Trunk Lid Opener Lock Switch Test (With Keyless Access System): Test

  1. Trunk Lid Opener Lock Switch - Test

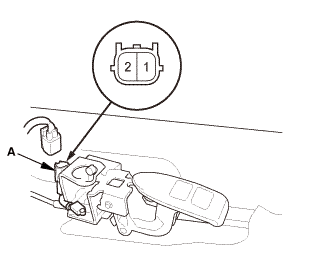

    GHH26302GHH26303Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH26302GHH26303Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Disconnect the connector

    2. Check for continuity between the terminals in each switch position according to the table

    3. If the continuity is not as specified, the trunk lid opener lock switch is faulty; replace the trunk lid opener/fuel fill door opener (A)

    4. Connect the connector.
