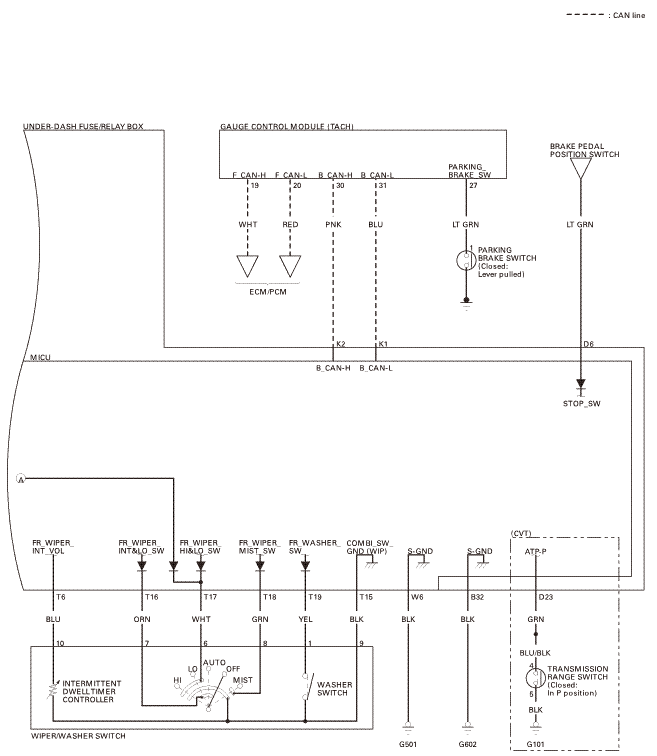

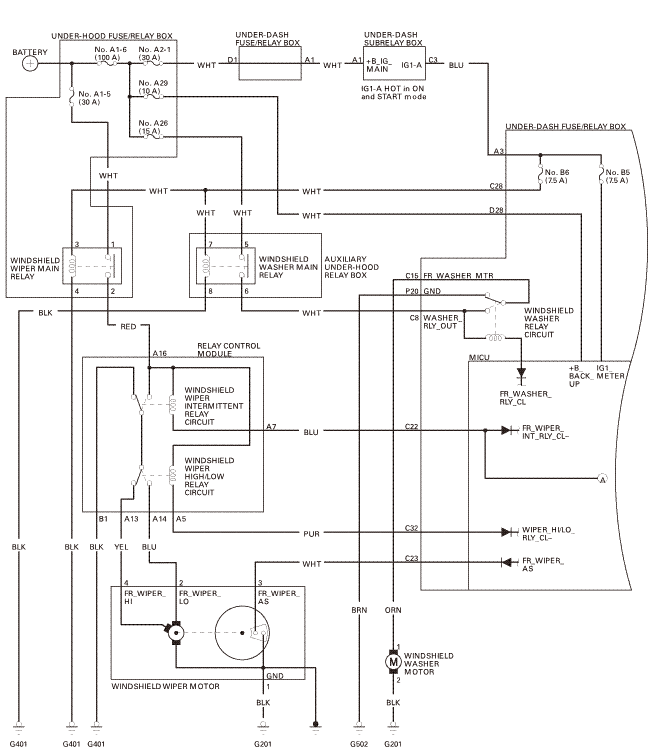

Wiper System / Washer System Circuit Diagram (With Keyless Access System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
