Keyless Access Control Unit Removal and Installation (With Keyless Access System): Removal

  1. Keyless Access Control Unit

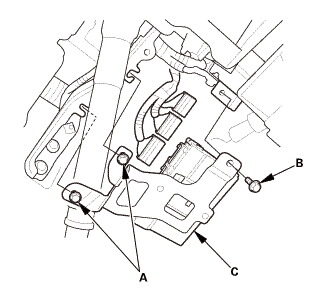

    GHH26254Courtesy of HONDA, U.S.A., INC.
    		 1. Loosen the bolts (A), then remove the bolt (B)

    2. Remove the keyless access control unit (C)

    3. Disconnect the connectors.

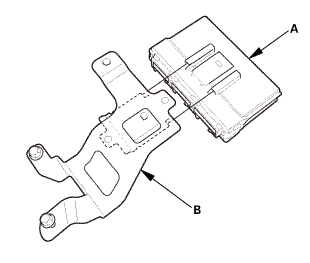

    GHH26255Courtesy of HONDA, U.S.A., INC.
    		 4. Remove the keyless access control unit (A) from the bracket (B).
