EVAP Control System Component Location Index (R18Z1)

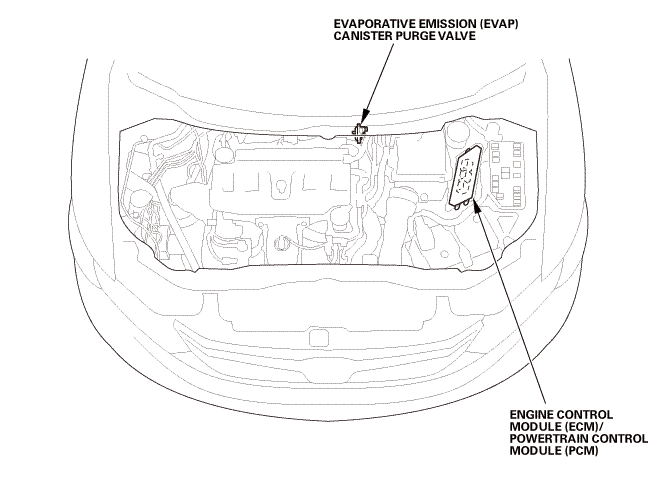

GHH9119Courtesy of HONDA, U.S.A., INC.
GHH9120Courtesy of HONDA, U.S.A., INC.
EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE Removal and Installation - Refer to: EVAP Canister Purge Valve Removal and Installation (K24Z7) , EVAP Canister Purge Valve Removal and Installation (R18Z1)
ENGINE CONTROL MODULE (ECM)/POWERTRAIN CONTROL MODULE (PCM) Update - Refer to: ECM/PCM Update , ECM Removal and Installation (K24Z7) , ECM/PCM Removal and Installation (Except K24Z7 and R18Z1 (CVT))
Removal and Installation - Refer to: ECM/PCM Update , ECM Removal and Installation (K24Z7) , ECM/PCM Removal and Installation (Except K24Z7 and R18Z1 (CVT))
EVAPORATIVE EMISSION (EVAP) CANISTER Removal and Installation - Refer to: EVAP Canister Removal and Installation (K24Z7) , EVAP Canister Removal and Installation (R18Z1)
EVAPORATIVE EMISSION (EVAP) CANISTER VENT SHUT VALVE Removal and Installation - Refer to: EVAP Canister Vent Shut Valve Removal and Installation (K24Z7) , EVAP Canister Vent Shut Valve Removal and Installation (R18Z1)
FUEL TANK PRESSURE (FTP) SENSOR Removal and Installation - Refer to: FTP Sensor Removal and Installation (K24Z7) , FTP Sensor Removal and Installation (R18Z1)
