Electronic Throttle Control System Description - Control

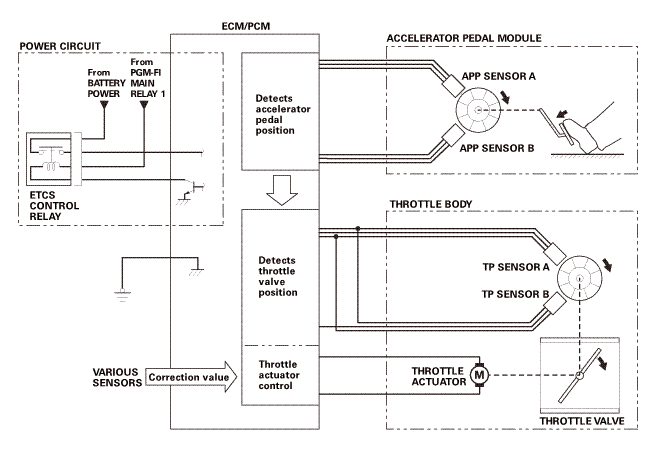

When the accelerator pedal is operated, accelerator pedal position (APP) sensor is driven and the accelerator pedal position is detected. The accelerator pedal position is delivered to the engine control module (ECM)/powertrain control module (PCM), and the ECM/PCM drives the throttle actuator in the throttle body based on the delivered position to open and close the throttle valve. Throttle position is detected by the throttle position (TP) sensor in the throttle body and delivered to the ECM/PCM.
