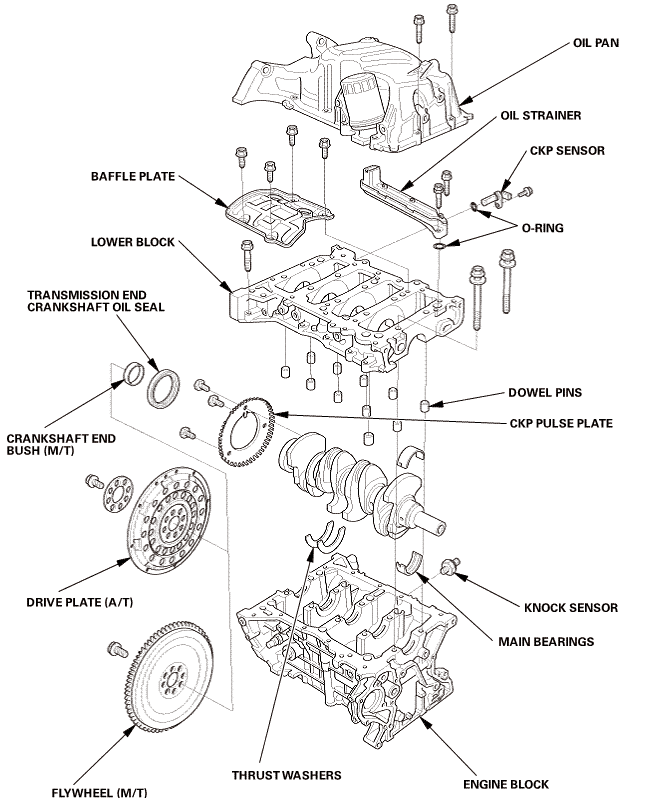

Engine Block Assembly Component Location Index (Except K24Z7)

Courtesy of HONDA, U.S.A., INC.

CKP PULSE PLATE	Removal and Installation - Refer to: Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (K24Z7) , Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (R18Z1) , Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (R18A9)
CRANKSHAFT	End Play - Refer to: Connecting Rod and Crankshaft End Play Inspection (K24Z7) , Connecting Rod and Crankshaft End Play Inspection (R18Z1) , Connecting Rod and Crankshaft End Play Inspection (R18A9)
	Runout - Refer to: Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (K24Z7) , Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (R18Z1) , Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (R18A9)
	Out-of-Round - Refer to: Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (K24Z7) , Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (R18Z1) , Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (R18A9)
	Removal and Installation - Refer to: Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (K24Z7) , Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (R18Z1) , Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (R18A9)
MAIN BEARINGS	Oil Clearance - Refer to: Crankshaft Main Bearing Replacement (K24Z7) , Crankshaft Main Bearing Replacement (R18Z1) , Crankshaft Main Bearing Replacement (R18A9)
	Selection - Refer to: Crankshaft Main Bearing Replacement (K24Z7) , Crankshaft Main Bearing Replacement (R18Z1) , Crankshaft Main Bearing Replacement (R18A9)
OIL PAN	Removal and Installation - Refer to: Engine Oil Pan Removal and Installation (K24Z7) , Engine Oil Pan Removal and Installation (Except K24Z7)
OIL STRAINER	Engine Oil Strainer Removal and Installation (Except K24Z7)
TRANSMISSION END CRANKSHAFT OIL SEAL (M/T)	Replacement - In Car - Refer to: Transmission End Crankshaft Oil Seal Replacement - In Car (K24Z7) , Automatic Transmission End Crankshaft Oil Seal Replacement - In Car (A/T) , Manual Transmission End Crankshaft Oil Seal Replacement - In Car (R18Z1 M/T) , Pulley End Crankshaft Oil Seal Replacement (Except K24Z7)
TRANSMISSION END CRANKSHAFT OIL SEAL (A/T)	Replacement - In Car - Refer to: Transmission End Crankshaft Oil Seal Replacement - In Car (K24Z7) , Automatic Transmission End Crankshaft Oil Seal Replacement - In Car (A/T) , Manual Transmission End Crankshaft Oil Seal Replacement - In Car (R18Z1 M/T) , Pulley End Crankshaft Oil Seal Replacement (Except K24Z7)

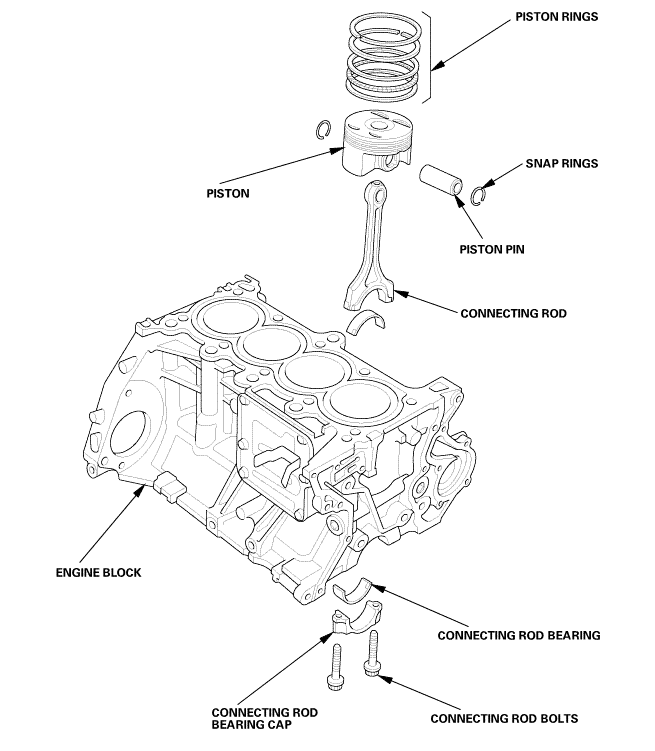

Courtesy of HONDA, U.S.A., INC.

CONNECTING ROD	End Play - Refer to: Connecting Rod and Crankshaft End Play Inspection (K24Z7) , Connecting Rod and Crankshaft End Play Inspection (R18Z1) , Connecting Rod and Crankshaft End Play Inspection (R18A9)
CONNECTING ROD BEARING	Replacement - Refer to: Connecting Rod Bearing Replacement (K24Z7) , Connecting Rod Bearing Replacement (R18Z1) , Connecting Rod Bearing Replacement (R18A9)
CONNECTING ROD BOLT	Inspection - Refer to: Connecting Rod Bolt Inspection (K24Z7) , Connecting Rod Bolt Inspection (Except K24Z7)
ENGINE BLOCK	Cylinder Bore Inspection - Refer to: Block and Piston Inspection (K24Z7) , Block and Piston Inspection (R18Z1) , Block and Piston Inspection (R18A9)
	Warpage Inspection - Refer to: Block and Piston Inspection (K24Z7) , Block and Piston Inspection (R18Z1) , Block and Piston Inspection (R18A9)
	Cylinder Bore Honing - Refer to: Cylinder Bore Honing (K24Z7) , Cylinder Bore Honing (R18Z1) , Cylinder Bore Honing (R18A9)
PISTON	Removal and Installation - Refer to: Piston, Ring, Pin, and Connecting Rod Removal and Installation (K24Z7) , Piston, Ring, Pin, and Connecting Rod Removal and Installation (R18Z1) , Piston, Ring, Pin, and Connecting Rod Removal and Installation (R18A9)
	Inspection - Refer to: Block and Piston Inspection (K24Z7) , Block and Piston Inspection (R18Z1) , Block and Piston Inspection (R18A9)
	Disassembly - Refer to: Piston, Ring, Pin, and Connecting Rod Removal and Installation (K24Z7) , Piston, Ring, Pin, and Connecting Rod Removal and Installation (R18Z1) , Piston, Ring, Pin, and Connecting Rod Removal and Installation (R18A9)
	Reassembly - Refer to: Piston, Ring, Pin, and Connecting Rod Removal and Installation (K24Z7) , Piston, Ring, Pin, and Connecting Rod Removal and Installation (R18Z1) , Piston, Ring, Pin, and Connecting Rod Removal and Installation (R18A9)
PISTON PIN	Inspection - Refer to: Piston, Ring, Pin, and Connecting Rod Removal and Installation (K24Z7) , Piston, Ring, Pin, and Connecting Rod Removal and Installation (R18Z1) , Piston, Ring, Pin, and Connecting Rod Removal and Installation (R18A9)
PISTON RINGS	Removal and Installation - Refer to: Piston, Ring, Pin, and Connecting Rod Removal and Installation (K24Z7) , Piston, Ring, Pin, and Connecting Rod Removal and Installation (R18Z1) , Piston, Ring, Pin, and Connecting Rod Removal and Installation (R18A9)
