Rocker Arm Oil Control Valve Removal/Installation

Remove the strut brace (see FRAME BRACE REPLACEMENT ).
Disconnect the rocker arm oil control solenoid connector (A) and the rocker arm oil pressure switch connector (B).

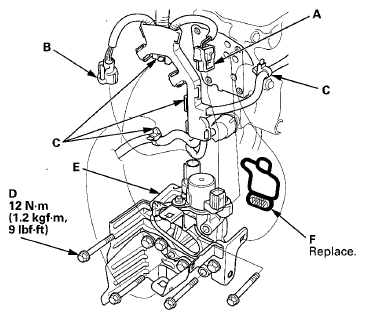

Fig 1: Rocker Arm Oil Control Valve System Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness clamps (C) and the bolts (D).
Remove the rocker arm oil control valve assembly (E) and the rocker arm oil control valve filter (F).
Remove the engine wire harness bracket (A) (also (B) (if equipped)) from the rocker arm oil control valve (C).

Fig 2: Rocker Arm Oil Control Valve And Engine Wire Harness Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal with a new rocker arm oil control valve filter.
