Connecting Pipe Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant (see COOLANT REPLACEMENT ).
Remove the thermostat housing (see THERMOSTAT HOUSING REMOVAL AND INSTALLATION ).
Remove the connecting pipe (A).

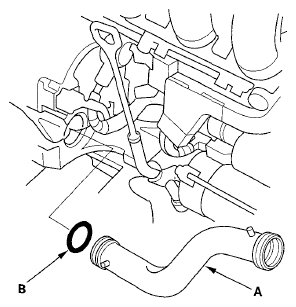

Fig 1: Identifying Connecting Pipe & O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the connecting pipe with a new O-ring (B).
Install the thermostat housing (see INSTALLATION ).
Refill the radiator with engine coolant, and bleed the air from the cooling system with the heater valve open (see step 8).
Clean up any spilled engine coolant.
