Radiator Cap Test
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

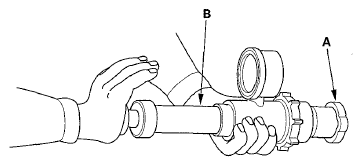

- Wait until the engine is cool, then carefully remove the radiator cap (A). Wet the radiator cap seal with engine coolant, then install it on a commercially available pressure tester (B).
- Apply a pressure of 93-123 kPa (0.95-1.25 kgf/cm2 , 14-18 psi).
- Check for a drop in pressure.
- If the pressure drops, replace the radiator cap.
