Section 188 (TPMS System - Testing & Troubleshooting)
>>
Circuit Diagram
>>

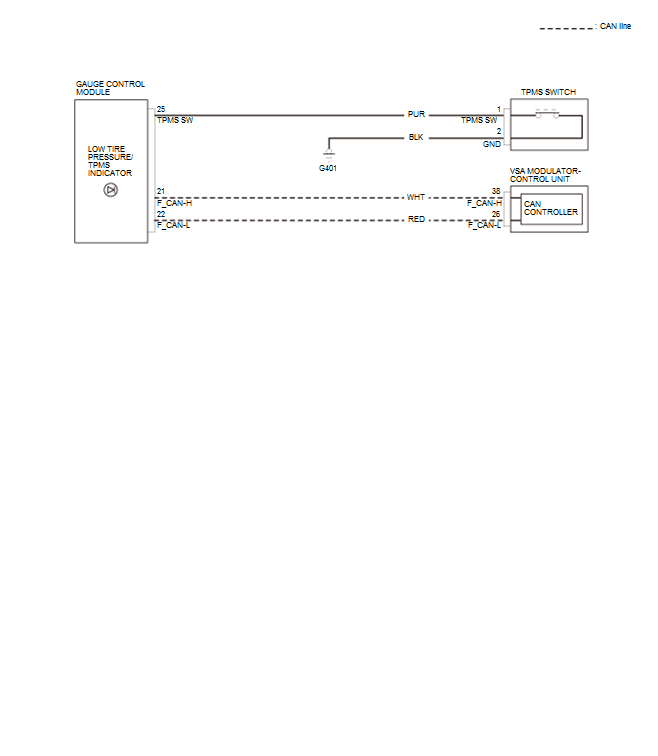

TPMS Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
TPMS Circuit Diagram
WARNING:
This page is about a different car, the 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, 2016 Honda Fit, and 2015 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of HONDA, U.S.A., INC.
