TPMS System Description - System Diagram
WARNING: This page is about a different car, the 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, 2016 Honda Fit, and 2015 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

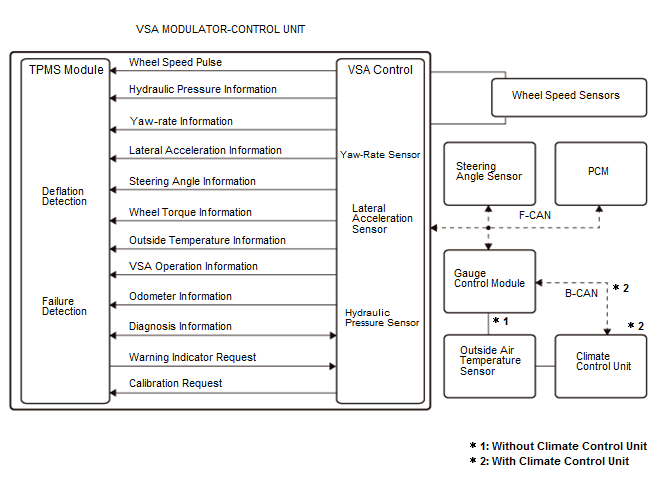

The TPMS module is integrated into the VSA modulator-control unit. In order to control tire pressure monitoring, the TPMS module first receives inputs from the VSA system, which includes the wheel speed sensors, the lateral acceleration sensor, the yaw rate sensor, the hydraulic pressure sensor, the steering angle sensor, the PCM, and the gauge control module. Then, the TPMS module sends commands to the gauge control module through the VSA modulator-control unit and issues warnings to the driver.
