Removal &Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 Honda Fit, 2019 Honda Fit, 2018 Honda Fit, 2017 Honda Fit, and 2016 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. TPMS Switch - Remove

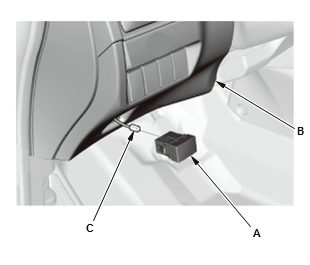

    GHH83773Courtesy of HONDA, U.S.A., INC.
    		 1. Push out the TPMS switch (A) from the back of the driver's dashboard lower cover (B)

    2. Disconnect the connector (C).
  2. All Removed Parts - Install
      1. Install the TPMS switch in the reverse order of removal.
