Canada models

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connector (A) from the washer fluid level switch (B).

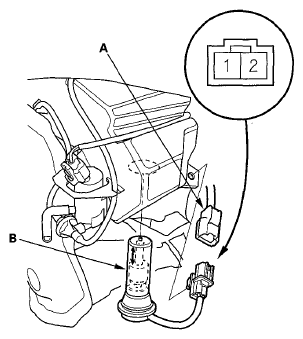

Fig 1: Identifying Washer Fluid Level Switch & 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the washer fluid level switch from the washer reservoir.
NOTE: Fluid may flow out of the opening.
Check for continuity between terminals No. 1 and No. 2 in each float position.
- There should be continuity when the float is down.
- There should be no continuity when the float is up.
If the continuity is not as specified, replace the switch.
