Electrical Compass Unit Connector Inputs and Outputs

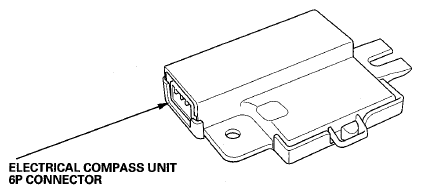

Fig 1: Identifying Electrical Compass Unit Connector
G08091256Courtesy of AMERICAN HONDA MOTOR CO., INC.
