Driver's Power Seat Motor Test

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Disconnect the 6P and 8P connectors from each power seat motor.

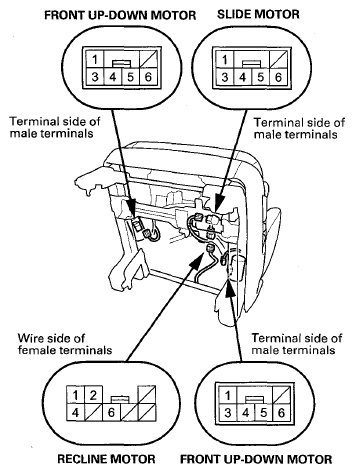

Fig 1: Identifying 6P And 8P Connectors Of Front Up-Down, Recline And Slide Motors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

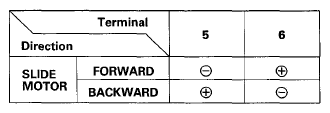

Fig 2: Slide Motor Terminals Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

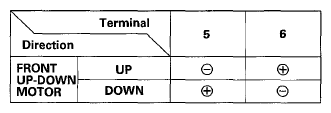

Fig 3: Front Up-Down Motor Terminals Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

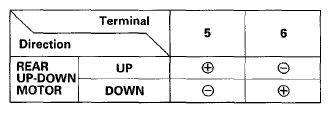

Fig 4: Rear Up-Down Motor Terminals Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

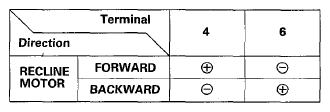

Fig 5: Recline Motor Terminals Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace the appropriate motor.
- Slide motor (see FRONT SEAT SLIDE MOTOR REPLACEMENT )
- Front up-down motor (see FRONT SEAT FRAME REPLACEMENT )
- Rear up-down motor (see FRONT SEAT FRAME REPLACEMENT )
- Recline motor (see FRONT SEAT RECLINE MOTOR REPLACEMENT )
NOTE: The front and rear up-down motors are part of the seat frame.
