With navigation

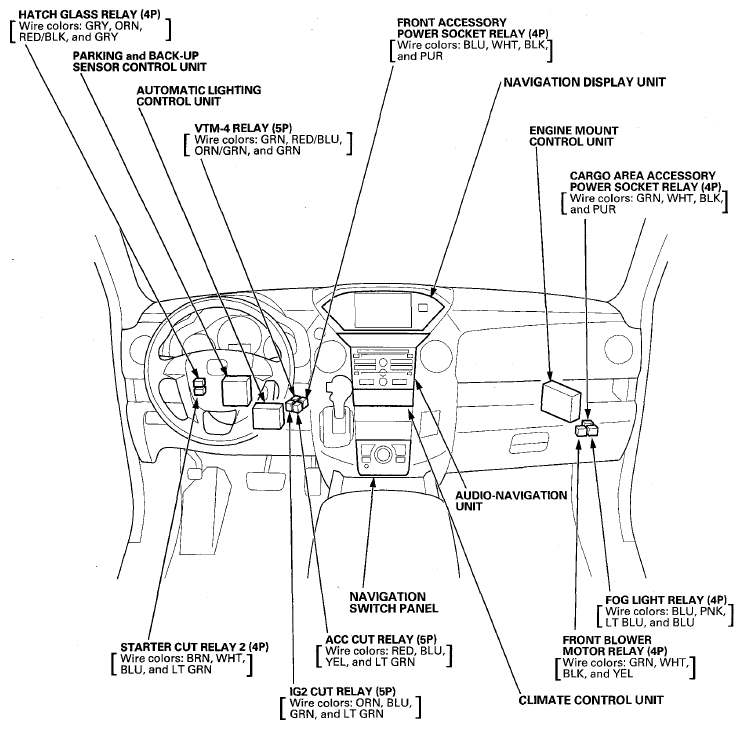

Fig 1: Dashboard Relay And Control Unit Locations (With Navigation)
G08090550Courtesy of AMERICAN HONDA MOTOR CO., INC.
