Engine Compartment

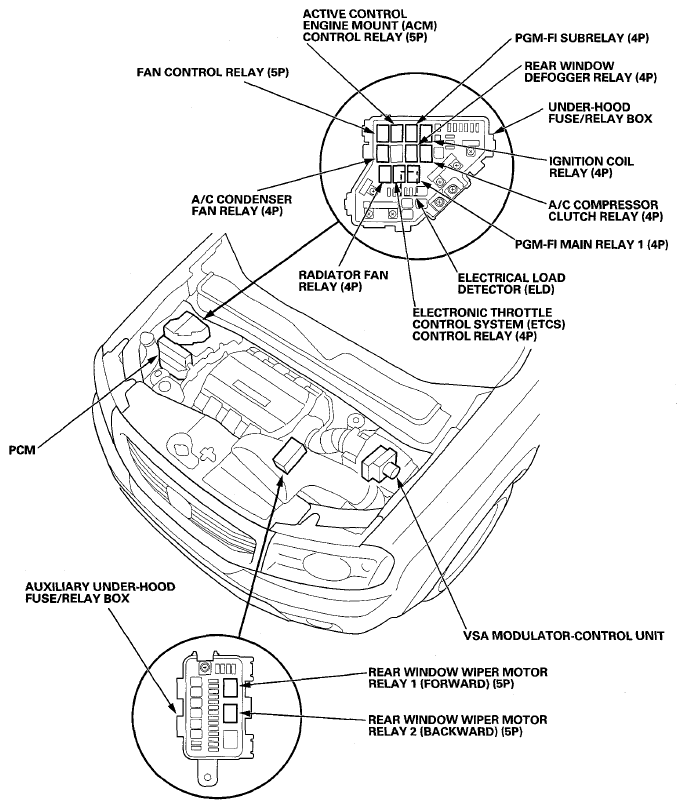

Fig 1: Engine Compartment Relay And Control Unit Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.
