Audio Unit Connector for Inputs and Outputs

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

With navigation

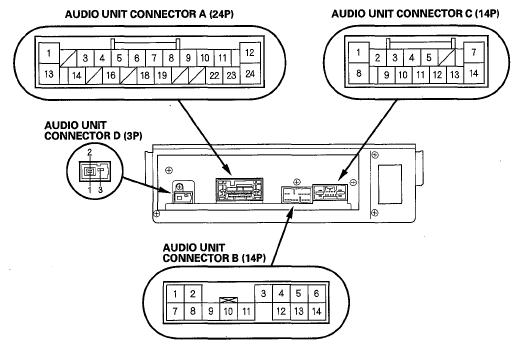

Fig 1: Identifying Audio Unit Connector For Inputs And Outputs - With Navigation

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Audio Unit Connector A (24P)

Fig 2: Identifying Audio Unit Connector A (24P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE SPECIFICATION

Cavity	Wire	Terminal Name	Connects to
A1	RED	ILL-BULB	Dash lights brightness controller
A3	LT BLU	K-LINE	Data link connector (DLC)
A4	GRN/WHT	SECURITY	Navigation display unit
A5	BRN	REMOTE GND	Audio remote switch ground
A6	YEL	RR SP-	Right rear tweeter
A7	RED/BLU	RR SP+	Right rear tweeter
A8	BLU/RED	RG L GND	Navigation unit
A9	WHT	RG L+	Navigation unit
A10	RED/YEL	RL SP-	Left rear tweeter
A11	BRN/WHT	RL SP+	Left rear tweeter
A12	BLK	MAIN GND	Ground G404
A13	RED/BLK	ILL+	No. 4 (15 A) fuse in the under-hood fuse/relay box
A14	YEL/RED	ACC	No. 32 (7.5 A) fuse in the under-dash fuse/relay box
A16	GRN/RED	REMOTE	Audio remote switch
A18	RED	FR SP	Front passenger's door speaker, Right tweeter
A19	BLU	FR SP+	Front passenger's door speaker, Right tweeter
A22	PUR	FL SP-	Driver's door speaker. Left tweeter
A23	LT GRN	FL SP+	Driver's door speaker. Left tweeter
A24	WHT	+B	No. 5 (20 A) fuse in the under-dash fuse/relay box

Audio Unit Connector B (14P)

Fig 3: Identifying Audio Unit Connector B (14P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE SPECIFICATION

Cavity

Wire

Terminal Name

Connects to

YEL

+B GA-NET 1

Audio disc changer

PUR

SYSTEM ACC

Audio disc changer

GRY⁽¹⁾

AUDIO BUS 1 (GA-NET) SHIELD

Shield for terminals No. 9 and No. 10

GRY⁽¹⁾

AUDIO SHIELD

Shield for terminals No. 5, No. 6, No. 13 and No. 14

BLK

AUDIO R+

Audio disc changer

GRN

AUDIO L+

Audio disc changer

BLU

+B GA-NET2

Audio disc changer

GRN/BLK

GA-NET ILL+

Audio disc changer

RED/BLU

AUDIO BUS+ (GA-NET)

Audio disc changer

B10

YEL

AUDIO BUS- (GA-NET)

Audio disc changer

B11

GRN/RED

GA-NET GND

Audio disc changer

B12

GRN

GA-NET ILL CTRL

Audio disc changer

B13

RED

AUDIO R-

Audio disc changer

B14

WHT

AUDIO-

Audio disc changer

⁽¹⁾	The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

Audio Unit Connector C (14P)

Fig 4: Identifying Audio Unit Connector C (14P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE SPECIFICATION

Cavity

Wire

Terminal Name

Connects to

WHT

AUX L CH

Auxiliary jack assembly

RED

AUX SIG GND

Auxiliary jack assembly

BLU

AUX GND

Auxiliary jack assembly

RED

TELM SIG-

HandsFreeLink control unit

GRN

TELM SIG+

HandsFreeLink control unit

LT GRN/RED

SP SUB WF-

Subwoofer

BRN

AUX R CH

Auxiliary jack assembly

GRY⁽¹⁾

AUX SH GND

Shield for terminals No. 1, No. 2, No. 3, No. 8, and No. 10

C10

YEL

AUX DET

Auxiliary jack assembly

C11

GRN

HFL MUTE

HandsFreeLink control unit

C12

GRY⁽¹⁾

TELM SIG SH

Shield for terminals No. 4 and No. 5

C13

BLU

HFL ICON

HandsFreeLink control unit

C14

YEL/BLK

SP SUB WF+

Subwoofer

⁽¹⁾	The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

Audio Unit Connector D (3P)

Fig 5: Identifying Audio Unit Connector D (3P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE SPECIFICATION

Cavity	Wire Color	Terminal Name	Connects to
D1	--	ANT IN	AM/FM antenna amplifier
D2	--	ANT GND	Shield for terminal No. 1
D3	--	ANT SW +B	AM/FM antenna amplifier

Without navigation/6 CD type

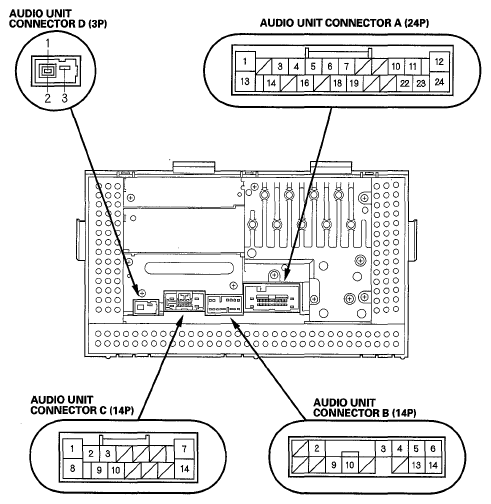

Fig 6: Identifying Audio System Connector Terminals - Without Navigation/6 CD Type

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Audio Unit Connector A (24P)

Fig 7: Identifying Audio Unit Connector A (24P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE SPECIFICATION

Cavity	Wire	Terminal Name	Connects to
A1	RED	ILL-BULB	Dash lights brightness controller
A3	LT BLU	K-LINE	Data link connector (DLC)
A4	RED/WHT	SECURITY	Multiplex integrated control unit (MICU)
A5	BRN	REMOTE	Audio remote switch ground
A6	YEL	RR SP-	Right rear tweeter
A7	RED/BLU	RR SP+	Right rear tweeter
A10	RED/YEL	RL SP-	Left rear tweeter
A11	BRN/WHT	RL SP+	Left rear tweeter
A12	BLK	MAIN GND	Body ground to G404
A13	RED/BLK	ILL+	No. 4 (15A) fuse in the under-hood fuse/relay box
A14	YEL/RED	ACC	No. 32 (7.5) fuse in the under-dash fuse/relay box
A16	GRN/RED	REMOTE	Audio remote switch
A18	RED	FR SP-	Front passenger's door speaker. Right tweeter
A19	BLU	FR SP-	Front passenger's door speaker, Right tweeter
A22	PUR	FL SP-	Driver's door speaker, Left tweeter
A23	LT GRN	FL SP+	Driver's door speaker, Left tweeter
A24	WHT	+B	No. 5 (20A) fuse in the under-dash fuse/relay box

Audio Unit Connector B (14P)

Fig 8: Identifying Audio Unit Connector B (14P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE SPECIFICATION

Cavity

Wire

Terminal Name

Connects to

ORN

SYS ON

XM receiver

GRY

GA-NET BUS SH

Shield for terminals No. 9 and No. 10

GRY⁽¹⁾

AUDIO SH

Shield for terminals No. 5, No. 6, No. 13 and No. 14

WHT

AUDIO R+

XM receiver

RED

AUDIO L+

XM receiver

BLU

GA-NET BUS+

XM receiver

B10

PNK

GA-NET BUS-

XM receiver

B13

BLK

AUDIO R-

XM receiver

B14

GRN

AUDIO L-

XM receiver

⁽¹⁾	The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

Audio Unit Connector C (14P)

Fig 9: Identifying Audio Unit Connector C (14P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE SPECIFICATION

Cavity

Wire

Terminal Name

Connects to

WHT

AUX L CH

Auxiliary jack assembly

RED

AUX SIG GND

Auxiliary jack assembly

BLU

AUX GND

Auxiliary jack assembly

LT GRN/RED

SP SUB WF-

Subwoofer

BRN

AUX R CH

Auxiliary jack assembly

LT GRN/RED⁽¹⁾

AUX SH GND

Shield for terminals No. 1, No. 2, No. 3, No. 8 and No. 10

C10

YEL

AUX DET

Auxiliary jack assembly

C14

YEL/BLK

SP SUB WF+

Subwoofer

⁽¹⁾	The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

Audio Unit Connector D (3P)

Fig 10: Identifying Audio Unit Connector D (3P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE SPECIFICATION

Cavity	Wire	Terminal Name	Connects to
D1	--	ANT IN	AM/FM antenna amplifier
D2	--	ANT GND	Shield for terminal No. 1
D3	--	ANT SW +B	AM/FM antenna amplifier

Without navigation/1 CD type

Fig 11: Identifying Audio System Connector Terminals - Without Navigation/1 CD Type

Courtesy of AMERICAN HONDA MOTOR CO., INC.

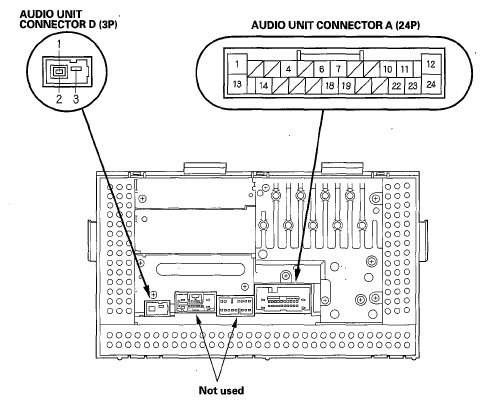

Audio Unit Connector A (24P) 1 CD Type

Fig 12: Identifying Audio Unit Connector A (24P) 1 CD Type

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE SPECIFICATION

Cavity	Wire	Terminal Name	Connects to
A1	RED	ILL-BULB	Dashlights brightness controller
A4	RED/WHT	SECURITY	Multiplex integrated control unit (MICU)
A6	YEL	RR SP-	Right rear speaker
A7	RED/BLU	RR SP+	Right rear speaker
A10	RED/YEL	RL SP-	Left rear speaker
A11	BRN/WHT	RL SP+	Left rear speaker
A12	BLK	MAIN GND	Body ground to G404
A13	RED/BLK	ILL+	No. 4 (15 A) fuse in the under-hood fuse/relay box
A14	YEL/RED	ACC	No. 32 (7.5 A) fuse in the under-dash fuse/relay box
A18	RED	FR SP-	Front passenger's door speaker, Right tweeter
A19	BLU	FR SP+	Front passenger's door speaker, Right tweeter
A22	PUR	FL SP-	Driver's door speaker, Left tweeter
A23	LT GRN	FL SP+	Driver's door speaker. Left tweeter
A24	WHT	+B	No. 5 (20 A) fuse in the under-dash fuse/relay box

Audio Unit Connector D (3P)

Fig 13: Identifying Audio Unit Connector D (3P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE SPECIFICATION

Cavity	Wire	Terminal Name	Connects to
D1	--	ANT IN	AM/FM antenna amplifier
D2	--	ANT GND	Shield for terminal No. 1
D3	--	ANT SW +B	AM/FM antenna amplifier
