Ignition Key Light Test

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX and precautions and procedures (see PRECAUTIONS AND PROCEDURES before doing repair or servicing.

Remove the steering column upper and lower covers (see PASSENGER'S DASHBOARD TRIM VENT ).
Disconnect the 6P connector (A).

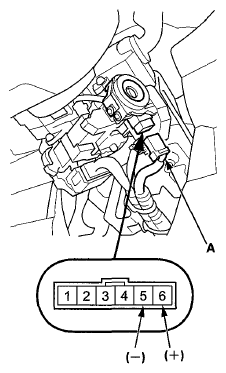

Fig 1: Identifying Ignition Key Light 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
The LED should come on when power is connected to terminal No. 6 and ground is connected to terminal No. 5.
If the LED does not come on, replace the steering lock assembly (see STEERING LOCK REPLACEMENT .
