Ignition Key Switch Test

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX and precautions and procedures (see PRECAUTIONS AND PROCEDURES before doing repair or servicing.

Remove the steering column upper and lower covers (see PASSENGER'S DASHBOARD TRIM VENT ).
Disconnect the 6P connector (A).

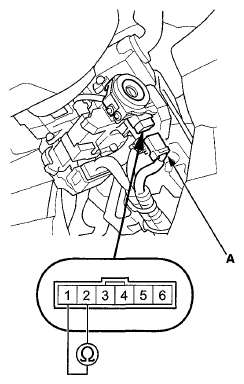

Fig 1: Checking Continuity Between Terminals No. 1 & No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between terminals No. 1 and No. 2.
- There should be continuity with the key in the ignition switch.
- There should be no continuity with the key removed.
If the continuity is not as specified, replace the steering lock assembly (see STEERING LOCK REPLACEMENT .
