Pinch Sensor Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the 2P connector (A) from the pinch sensor.
    NOTE: The graphic shows left side pinch sensor, right side is symmetrical.

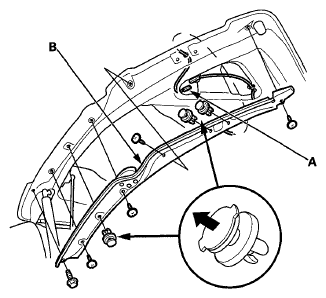

    Fig 1: Identifying 2P Connector Of Pinch Sensor
    G05966790Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the clips, screws, and bolts from the pinch sensor.
  4. Install in the reverse order of removal.
