CKP Pulse Plate Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crankshaft (see CRANKSHAFT AND PISTON REMOVAL ).
Remove the CKP pulse plate (A).

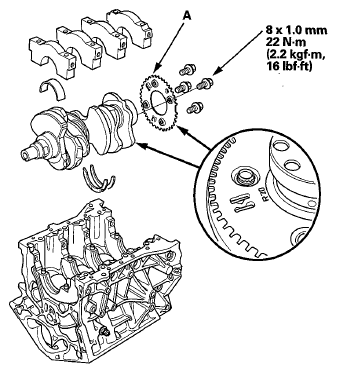

Fig 1: CKP Pulse Plate With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the CKP pulse plate in the reverse order of removal.
