Honda
>>
2014
>>
Pilot EX-L, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Accessory Power Sockets
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

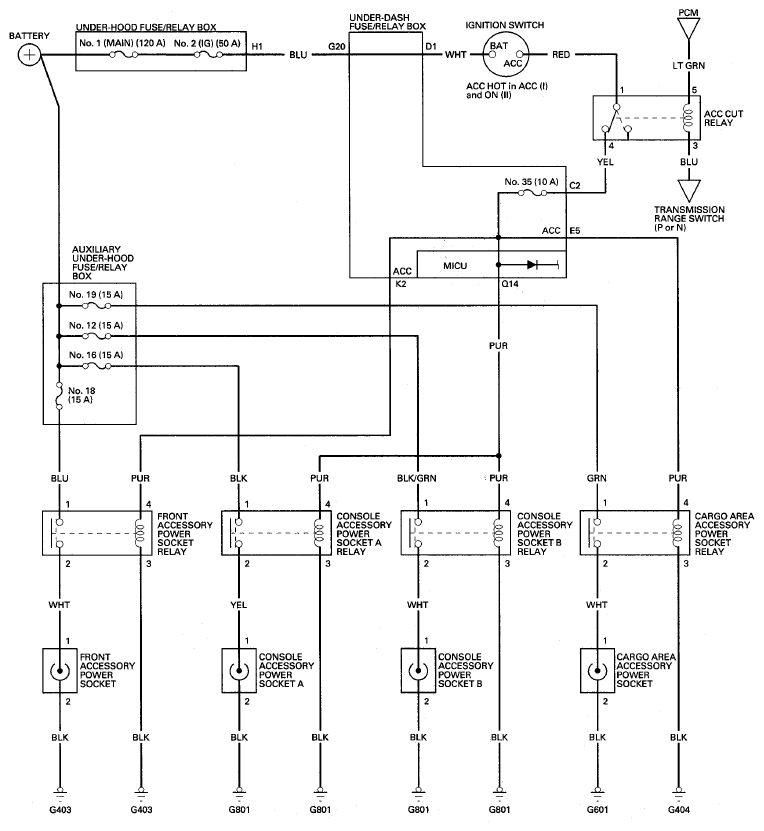

Fig 1: Accessory Power Sockets - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
