Rocker Arm Oil Pressure Sensor Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rocker arm oil pressure sensor cover.

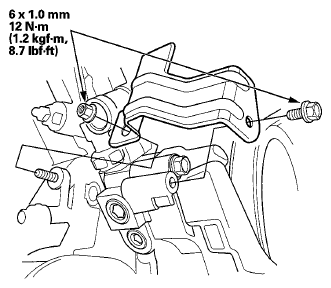

Fig 1: Rocker Arm Oil Pressure Sensor Cover Nut & Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the rocker arm oil pressure sensor connector, then remove the rocker arm oil pressure sensor.

Fig 2: Rocker Arm Oil Pressure Sensor Connector & O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply liquid gasket (P/N 08717-0004, 08718-0003, 08718-0004, or 08718-0009) to the rocker arm oil pressure sensor threads. Install the component within 5 minutes of applying the liquid gasket.
NOTE:
- Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the rocker arm oil pressure sensor.
- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
Install the rocker arm oil pressure sensor using a new O-ring.
Connect the rocker arm oil pressure sensor connector.
Install the rocker arm oil pressure sensor cover.
