Speaker Check Mode

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Not all self-diagnostic functions appear on all models.
There may be other self-diagnostic functions that are for factory use only.

Turn the ignition switch to ON (II).
Make sure the audio system is turned off.
Push and hold the preset No. 1 and No. 3 buttons.
While holding the buttons, push the VOL PUSH PWR knob to on.
Release the buttons and the speaker check mode begins. Atone should sound from one speaker.

Each time you press the SKIP button, the test moves to the next speaker in the order listed in the table.

NOTE: Adjust the volume level to a comfortable level.

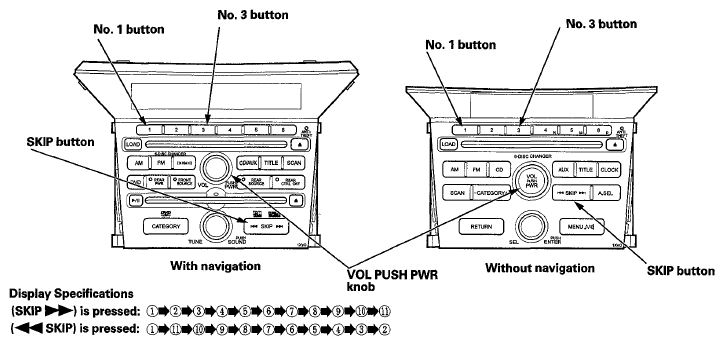

Fig 1: Identifying Audio System Skip Button, No. 1 Button & No. 3 Button

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Any other diagnostic screens shown are for the audio manufactures purpose only.

SPEAKER SPECIFICATION TABLE

-	Speaker	Displayed Segments	Remarks
(1)	Driver's door speaker	FR-L	All models
(2)	Left tweeter	TW-L	All models
(3)	Center speaker	CENTER	With rear entertainment system and/or navigation
(4)	Front Passenger's door speaker	FR-R	All models
(5)	Right tweeter	TW-R	All models
(6)	Right rear door speaker	RR-R	All models
(7)	Subwoofer	SUBW	All models
(8)	Right satellite speaker	SURR-R	With rear entertainment system and/or navigation
(9)	Left satellite speaker	SURR-L	With rear entertainment system and/or navigation
(10)	Left rear door speaker	RR-L	All models
(11)	All Speakers	ALL	-

Canceling the Speaker Check Mode

To end the speaker check mode, turn the audio unit off, or turn the ignition switch to LOCK (0).

NOTE: The volume level remains at the same level when you did the speaker test. If you turned the volume up to do the speaker check mode test, return the volume to its normal level.
