DTC P0847: Transmission Fluid Pressure Switch B (3rd Clutch) Circuit Low: Notes

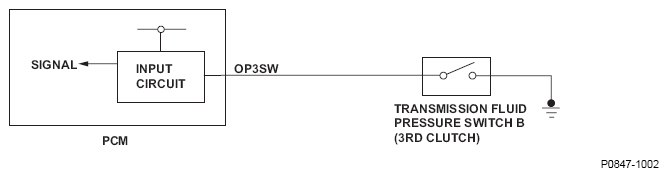

Fig 1: Transmission Fluid Pressure Switch B (3rd Clutch) Circuit Low - Wiring Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

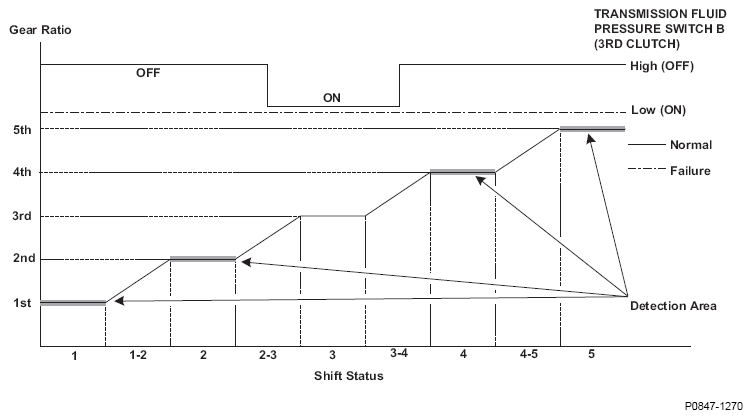

Fig 2: Transmission Fluid Pressure Switch B (3rd Clutch) Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.
