Keyless Access System Touch Sensor Circuit

Touch Sensor Circuit Troubleshooting

  1. Keyless access system check

    -1. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter HISTORY DATA.

    One-Push - KEYLESS ACCESS CONTROL UNIT - HISTORY DATA

    Select HISTORY CLEAR, and back to TEST MODE menu:

    NOTE:  When the freeze data is cleared, the information indicates "NOT CONFIRMED".

    • DRIVER DOOR UNLOCK SWITCH
    • DRIVER DOOR LOCK SWITCH
    • FRONT PASSENGER DOOR UNLOCK SWITCH
    • FRONT PASSENGER DOOR LOCK SWITCH

    -3. Turn the vehicle to the OFF (LOCK) mode.

    -4. Get out of the vehicle with the keyless remote, and touch the each door outer handle touch sensor and press the lock button.

    -5. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter HISTORY DATA.

    One-Push - KEYLESS ACCESS CONTROL UNIT - HISTORY DATA

    Recheck HISTORY DATA.

    • DRIVER DOOR UNLOCK SWITCH
    • DRIVER DOOR LOCK SWITCH
    • FRONT PASSENGER DOOR UNLOCK SWITCH
    • FRONT PASSENGER DOOR LOCK SWITCH

    Is all the information OK?

    YES

    Intermittent failure, the system is OK at this time.

    NO

    Go to step 2.

  2. Open wire check (GND line)

    -1. Disconnect the following connectors.

    Each door outer handle 8P connector

    -2. Check for continuity between test points 1 and 2.

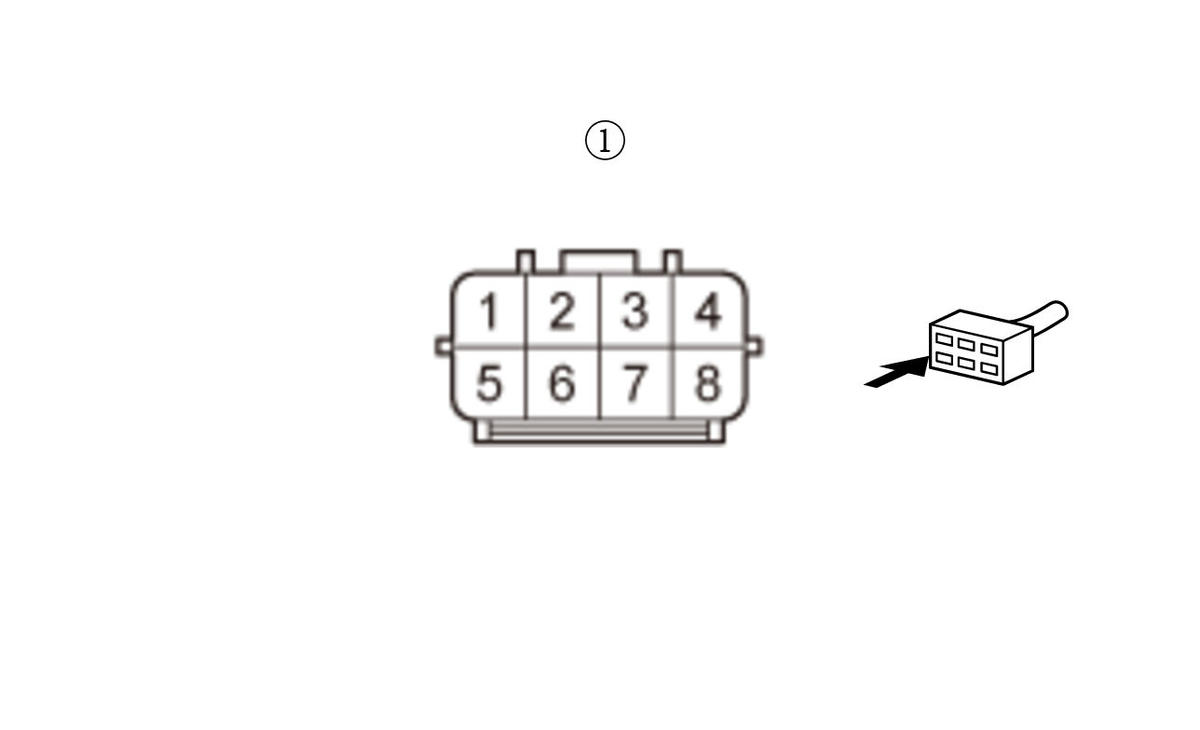

    Driver's door

    Test condition Vehicle OFF (LOCK) mode

    Driver's door outer handle 8P connector: disconnected
    Test point 1 Driver's door outer handle 8P connector (female terminals) No. 8:
    Test point 2 Body ground
    GHH420624Courtesy of HONDA, U.S.A., INC.

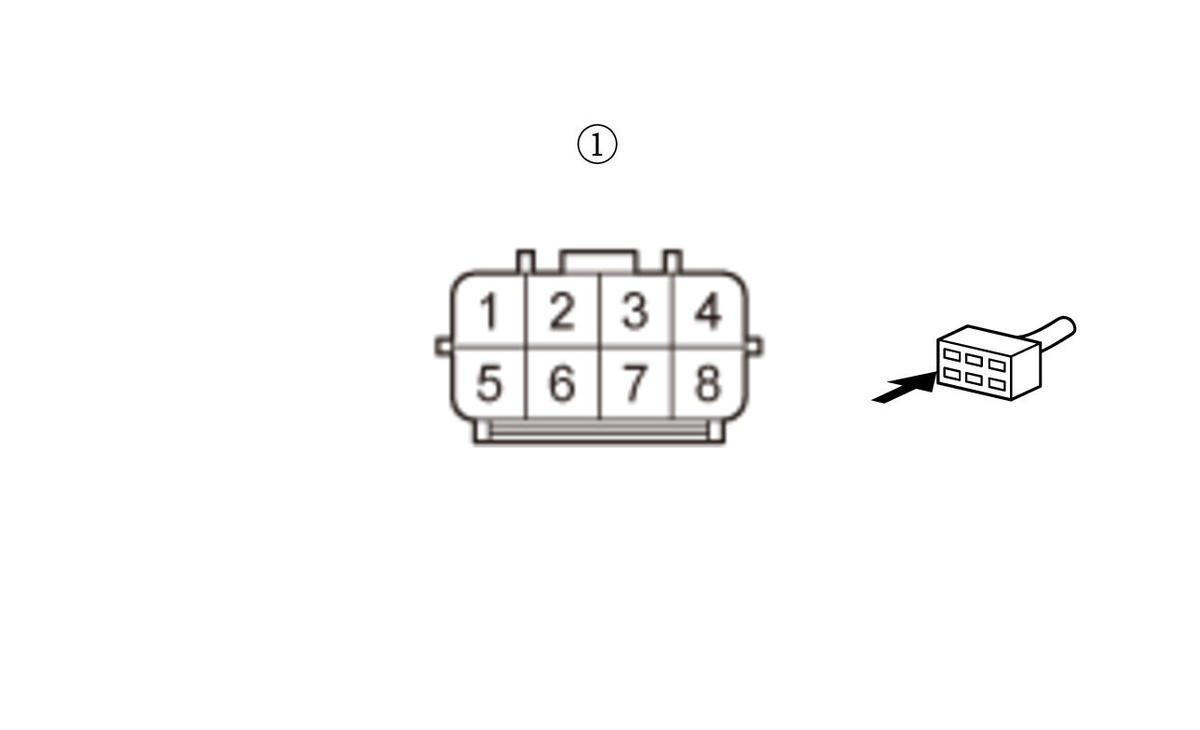

    Front passenger's door

    Test condition Vehicle OFF (LOCK) mode

    Front passenger's door outer handle 8P connector: disconnected
    Test point 1 Front passenger's door outer handle 8P connector (female terminals) No. 8:
    Test point 2 Body ground
    GHH420626Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The GND wires are OK. Go to step 3.

    NO

    Repair an open or high resistance in the ground wire or poor ground (G301, G302).

  3. Determine possible failure area (VOUT, others line)

    -1. Measure the voltage between test points 1 and 2.

    Each door

    Test condition Vehicle OFF (LOCK) mode

    Each door outer handle 8P connector: disconnected
    Test point 1 Each door outer handle 8P connector (female terminals) No. 4:
    Test point 2 Body ground
    GHH420628Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 4.

    NO

    Go to step 7.

  4. Open wire check (TS lines, DL lines)

    -1. Disconnect the following connector.

    Body control module connector G (32P)

    -2. Check for continuity between test points 1 and 2 respectively.

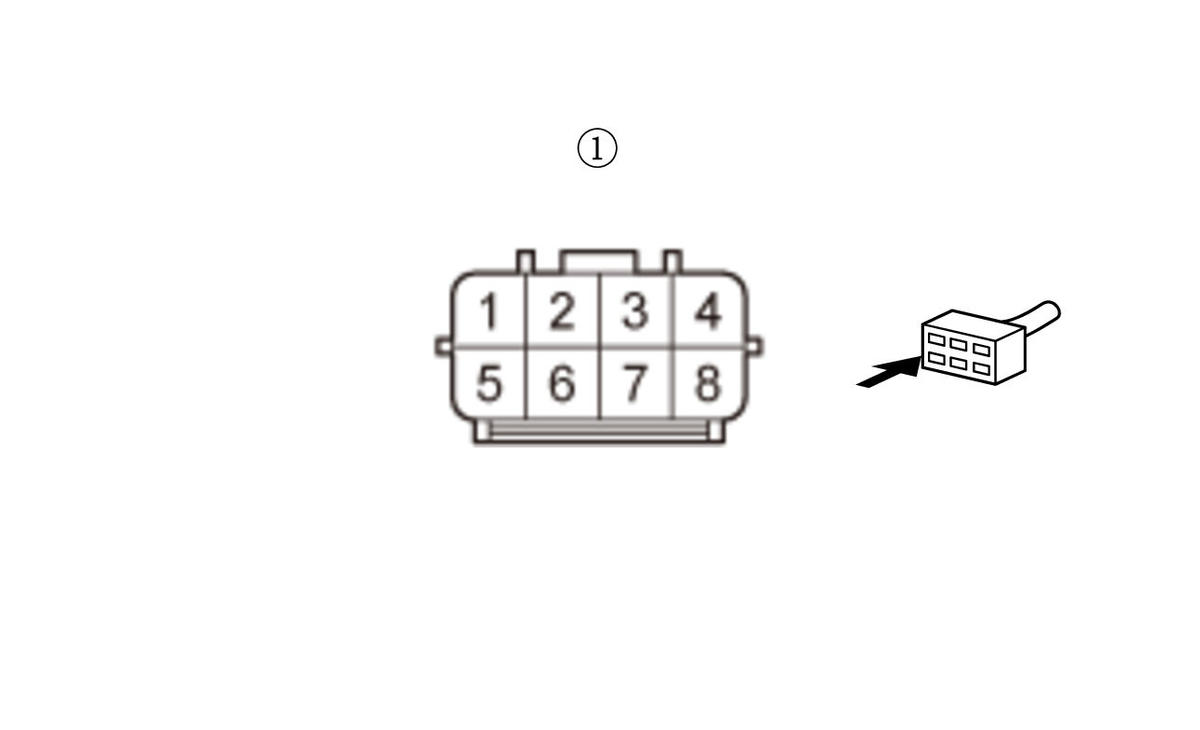

    Driver's door

    Test condition Vehicle OFF (LOCK) mode

    Driver's door outer handle 8P connector: disconnected
    Test point 1 Driver's door outer handle 8P connector (female terminals) No. 3:
    Test point 2 Body control module connector G (32P) No. 22
    Test point 1 Driver's door outer handle 8P connector (female terminals) No. 7:
    Test point 2 Body control module connector G (32P) No. 19
    GHH420631Courtesy of HONDA, U.S.A., INC.

    Front passenger's door

    Test condition Vehicle OFF (LOCK) mode

    Front passenger's door outer handle 8P connector: disconnected
    Test point 1 Front passenger's door outer handle 8P connector (female terminals) No. 3:
    Test point 2 Body control module connector G (32P) No. 25
    Test point 1 Front passenger's door outer handle 8P connector (female terminals) No. 7:
    Test point 2 Body control module connector G (32P) No. 1
    GHH420634Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The TS FR DR, TS FR AS, DL FR DR, and DL FR AS wires are not open. Go to step 5.

    NO

    Repair an open or high resistance in the wire.

  5. Shorted wire check (TS lines, DL lines)

    -1. Check for continuity between test points 1 and 2 individually.

    Test condition Vehicle OFF (LOCK) mode

    Driver's door outer handle 8P connectors: disconnected

    Body control module connector G (32P): disconnected
    Test point 1 Body control module connector G (32P) No. 22
    Test point 2 Body ground
    Test point 1 Body control module connector G (32P) No. 19
    Test point 2 Body ground
    Test condition Vehicle OFF (LOCK) mode

    Front passenger's door outer handle 8P connectors: disconnected

    Body control module connector G (32P): disconnected
    Test point 1 Body control module connector G (32P) No. 25
    Test point 2 Body ground
    Test point 1 Body control module connector G (32P) No. 1
    Test point 2 Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The TS FR DR, TS FR AS, DL FR DR, and DL FR AS wires are OK. Go to step 6.

  6. Door outer handle touch sensor check

    -1. Substitute a known-good door outer handle touch sensor, and recheck.

    Is the system OK?

    YES

    Faulty the original door outer handle touch sensor; replace the door outer handle .

    NO

    Replace the body control module .

  7. Open wire check (VOUT lines)

    -1. Disconnect the following connector.

    Body control module connector G (32P)

    -2. Measure the voltage between test points 1 and 2 respectively.

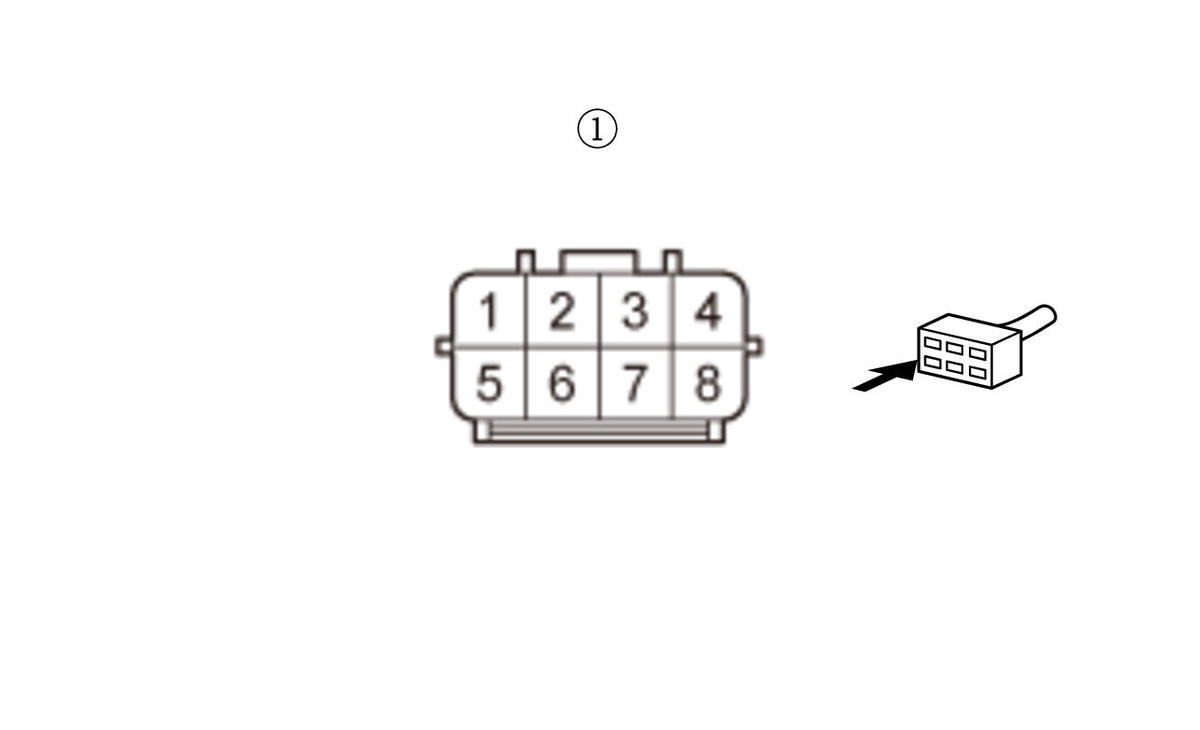

    Driver's door

    Test condition Vehicle OFF (LOCK) mode

    Driver's door outer handle 8P connectors: disconnected

    Body control module connector G (32P): disconnected
    Test point 1 Body control module connector G (32P) No. 31
    Test point 2 Driver's door outer handle 8P connector (female terminals) No. 4:
    GHH420636Courtesy of HONDA, U.S.A., INC.

    Front passenger's door

    Test condition Vehicle OFF (LOCK) mode

    Front passenger's door outer handle 8P connectors: disconnected

    Body control module connector G (32P): disconnected
    Test point 1 Body control module connector G (32P) No. 30
    Test point 2 Front passenger's door outer handle 8P connector (female terminals) No. 4:
    GHH420638Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The VOUT FR DR and VOUT FR AS wire are not open. Go to step 8.

    NO

    Repair an open or high resistance in the wire.

  8. Shorted wire check (VOUT lines)

    -1. Check for continuity between test points 1 and 2 individually.

    Driver's door

    Test condition Vehicle OFF (LOCK) mode

    Driver's door outer handle 8P connectors: disconnected

    Body control module connector G (32P): disconnected
    Test point 1 Body control module connector G (32P) No. 31
    Test point 2 Body ground
    Test condition Vehicle OFF (LOCK) mode

    Front passenger's door outer handle 8P connectors: disconnected

    Body control module connector G (32P): disconnected
    Test point 1 Body control module connector G (32P) No. 30
    Test point 2 Body ground

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The VOUT FR DR, VOUT FR AS wire are OK. Replace the body control module .
