Removal and Installation

How to use this manual .

NOTE:  Where icon is shown, click for further information.

NOTICE:

• Use fender covers to avoid damaging painted surfaces.
• To avoid damaging the wiring and terminals, unplug the wiring connectors carefully while holding the connector portion.
• Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact other wiring or hoses, or interfere with other parts.

NOTE:  Unless otherwise indicated, illustrations used in the procedure are for the model with the AWD.

Courtesy of HONDA, U.S.A., INC.

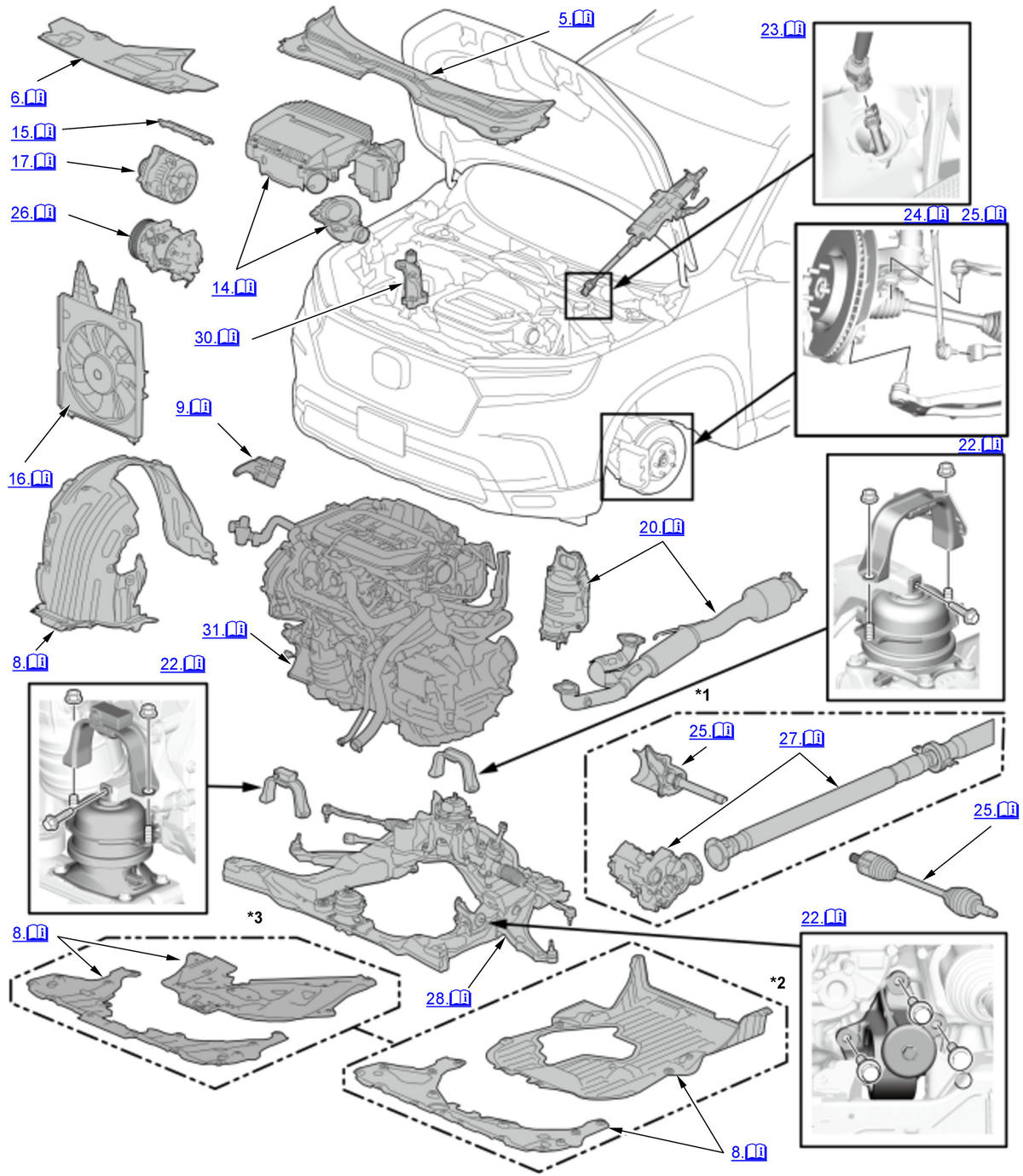

	Detailed information, notes, and precautions
*1	AWD
*2	Except TRAILSPORT
*3	TRAILSPORT

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

1. Vehicle - Lift
2. Hood - Wide Open

   Courtesy of HONDA, U.S.A., INC.

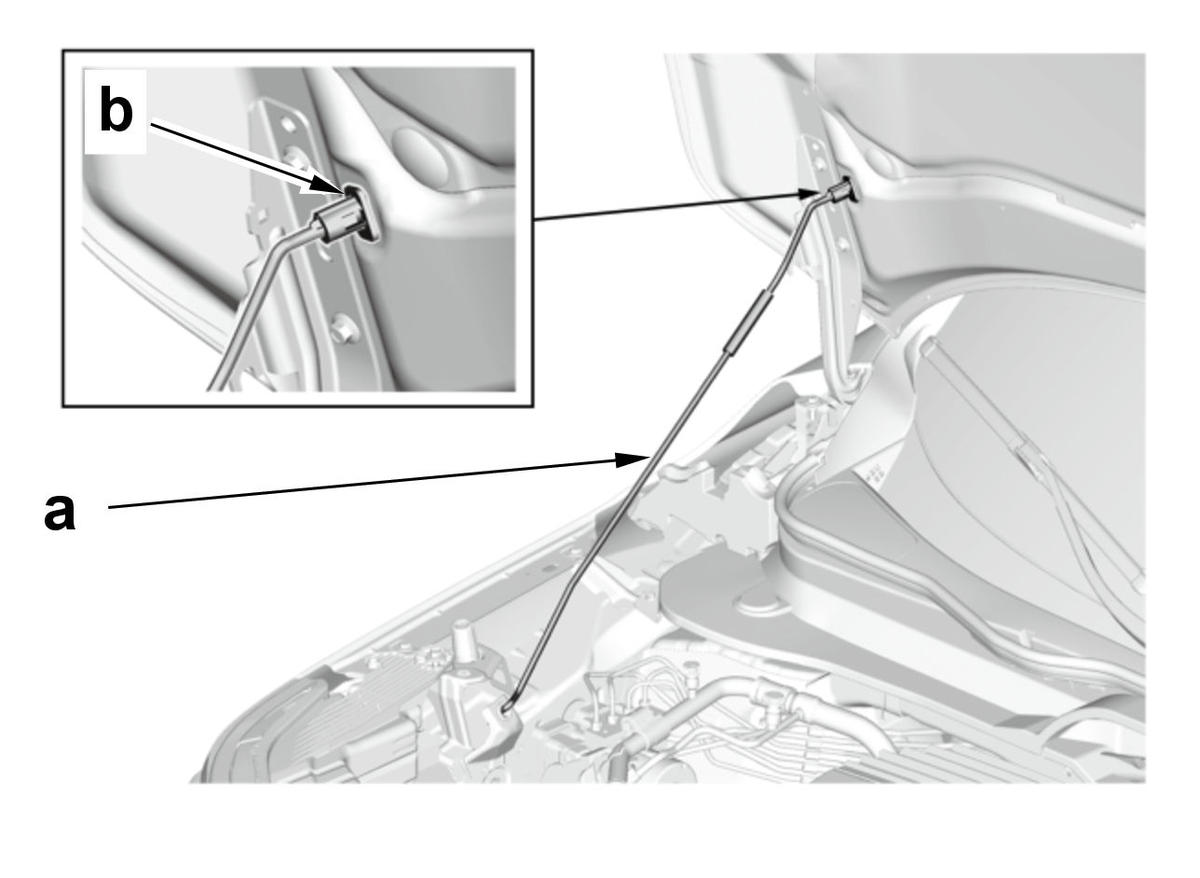

   1. Open the hood, and secure it with the hood support rod (a) in the wide-open position (b).

3. Fuel Pressure - Relieve - Refer to: Fuel Pressure Relieving () or Fuel Pressure Test ()
4. 12 Volt Battery Terminal - Disconnect
5. Cowl Cover - Remove
   • Cowl Cover
6. Front Grille Cover - Remove
   • Front Grille Cover
7. Front Wheel - Remove
   • Front Wheel (Both Sides)
8. Undercover Area Parts - Remove
   • Undercover Area
     • Splash Shield
     • Engine Undercover (Except TRAILSPORT)
     • Front Skid Plate (TRAILSPORT)
     • Left Front Inner Fender (As Needed)
     • Right Front Inner Fender (As Needed)
9. Engine Oil Pressure Sensor Heat Insulator - Remove
   • Engine Oil Pressure Sensor Heat Insulator
10. Engine Oil - Drain - Refer to: Engine Oil Replacement () or Engine Oil Level Check ()
11. Engine Coolant - Drain - Refer to: Coolant Check () or Coolant Replacement ()
12. ATF - Drain
13. Transfer Assembly Fluid - Drain (AWD)
14. Air Cleaner Area Parts - Remove
    • Air Cleaner Area
      • Air Cleaner Housing
      • Air Intake Tube
      • Air Flow Chamber
15. Front Engine Harness Heat Insulator - Remove
    • Front Engine Harness Heat Insulator
16. A/C Condenser Fan Shroud - Remove
    • A/C Condenser Fan Shroud
17. Alternator - Remove
    • Alternator

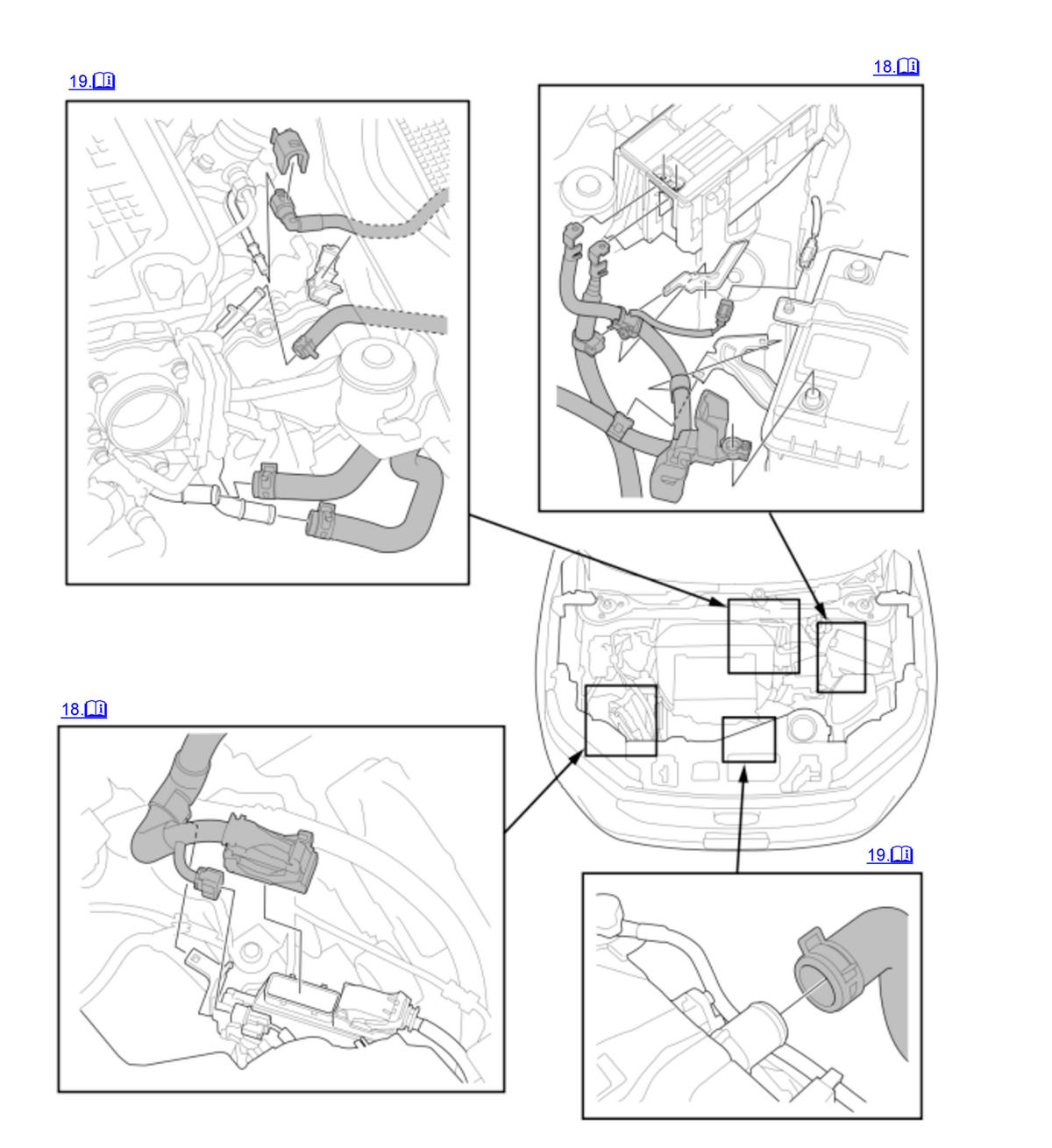

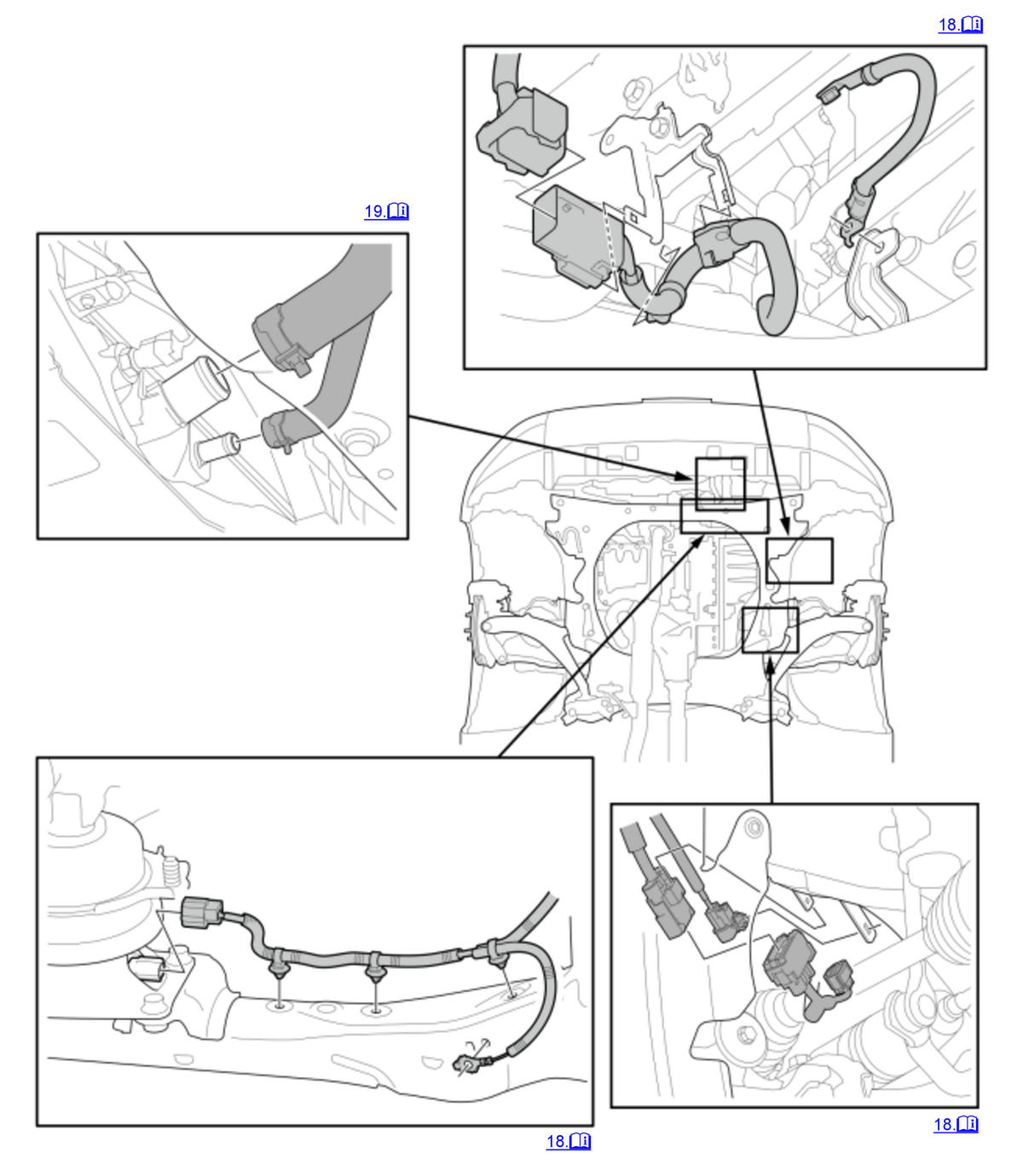

18. Wire Harness/Connector - Disconnect
    • Connector
    • Positive Cable (Under-Hood Fuse/Relay Box)
    • Transmission Ground Cable
    • ACM Ground
19. Hose - Disconnect
    • Radiator Area
      • Upper Radiator Hose
      • Lower Radiator Hose
      • ATF Warmar Hose
    • Heater Hose
    • Cylinder Head Cover Area
      • Fuel Feed Hose
      • EVAP Canister Purge Hose
20. Catalytic Converter Area Parts - Remove
    • Catalytic Converter Area
      • Under-Floor Three Way Catalytic Converter (Under-Floor TWC)
      • Rear Warm Up Three Way Catalytic Converter (WU-TWC) (Bank 1) (AWD)
21. Engine Support Hanger - Install
22. Front Subframe/Steering Gearbox Area Parts - Remove/Disconnect
    • Front Subframe/Steering Gearbox Area
      • Front Engine Mount Stop
      • Front Engine Mount
      • Rear Engine Mount Stop
      • Rear Engine Mount
      • Transmission Mount
      • Front Subframe Stiffener
23. Steering Joint - Disconnect
    • Steering Joint
24. Tie-Rod End Ball Joint - Disconnect
    • Tie-Rod End Ball Joint (Both Sides)
25. Front Suspension Area Parts - Remove/Disconnect
    • Front Suspension Area
      • Front Stabilizer Link Ball Joint (Both Sides)
      • Front Lower Arm Ball Joint (Both Sides)
      • Damper Fork (Both Side)
      • Front Driveshaft (Both Sides)
      • Intermediate Shaft (AWD)
26. A/C Compressor - Move
    • A/C Compressor

      NOTICE:

      • Do not disconnect and excessively bend the suction hose and the discharge hose.
      • Hang the A/C compressor with a zip tie.
      • Do not allow the A/C compressor to hang by the suction or discharge hose.
27. Transfer/Rear Differential Area Parts - Remove/Disconnect (AWD)
    • Transfer/Rear Differential Area
      • Propeller Shaft
      • Transfer Breather Tube
      • Transfer Assembly
28. Front Subframe - Remove
    • Front Subframe
29. Chain Hoist - Attach

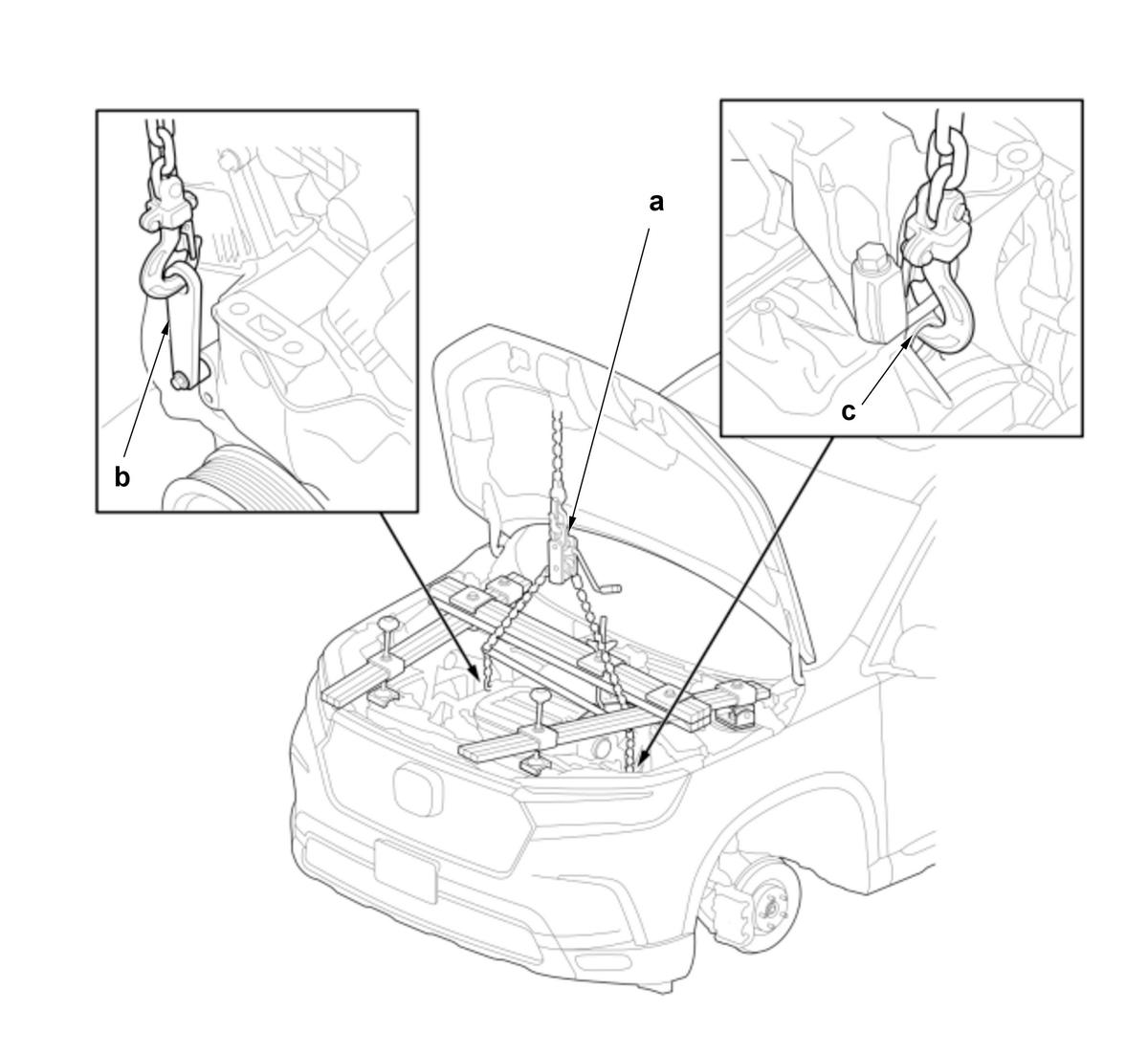

    1. Install a chain hoist (a).

    NOTE: Attach a chain hoist to the engine hanger (b) and the transmission hanger (c), then lift the engine/transmission until it is securely supported by the chain hoist.

    Courtesy of HONDA, U.S.A., INC.

    2. Remove the engine support hanger and the extra arm kit.

30. Side Engine Mount Bracket - Remove
    • Side Engine Mount Bracket
31. Engine - Remove

    1. Check that the engine/transmission is completely free of the vacuum hoses, fuel hoses, coolant hoses, and electrical harnesses. 2. Slowly lower the engine/transmission about 150 mm (5.91 in). Check once again that all the hoses and electrical harnesses are disconnected and free from the engine/transmission, then lower it all the way and support it. 3. Remove the chain hoist from the engine/transmission. 4. Raise the vehicle, and remove the engine/transmission from under the vehicle.

32. All Removed Parts - Install
    • Install the parts in the reverse order of removal.

      NOTICE:

      After mounting the side engine mount, the transmission mount, and the torque rod, confirm the tightening procedure before installing the remaining parts.

33. 12 Volt Battery Terminal - Connect
34. Transfer Assembly Fluid - Refill (AWD)
35. ATF - Refill
36. Engine Oil - Refill - Refer to: Engine Oil Replacement () or Engine Oil Level Check ()
37. Fuel Leak (Low Pressure Side) - Check
38. Engine Coolant - Refill - Refer to: Coolant Check () or Coolant Replacement ()
39. Fuel Leak (High Pressure Side) - Check
40. Fluid Leak - Check
41. PCM - Reset - Refer to: PCM Update ()  or PCM Reset ()
42. PCM Idle - Learn
43. Idle Speed - Inspect
44. Ignition Timing - Inspect
45. Wheel Alignment - Check
46. VSA Sensor Neutral Position - Memorize - Refer to: VSA Modulator-Control Unit Update () or VSA Sensor Neutral Position Memorization ()
