Keyless Access System Symptom Troubleshooting - Cannot select ON mode with keyless access and with the keyless remote touching the engine start/stop switch: Inspection
+B_SMART, SS1(+), SS2(-), GND Circuit Inspection
Test Procedure
- Preparation
- -

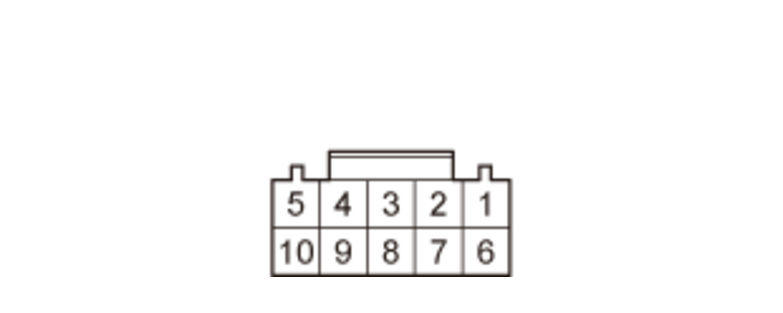

Engine start/stop switch connector (10P): disconnected
- -
Body control module connector C (66P): disconnected
- -
- Procedure
- -
Perform the inspection according to the following chart.
- -
| (Disconnected) Engine start/stop switch connector (10P) female terminals | (Disconnected) Body control module connector C (66P) female terminals | ||||
| IG Mode |
|
|
Normal Conditions | ||
| +B_SMART circuit inspection | OFF | 12 V battery voltage [circuit type 1] | |||
| SS1(+) open wire inspection | OFF | There is less than 1 Ohm | |||
| SS2(-) open wire inspection | OFF | There is less than 1 Ohm | |||
| GND open wire inspection | OFF | There is less than 1 Ohm | |||
Results
- If it is abnormal, there is a problem in the circuit.
If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.
+B_BACK_UP, GND, +B_SMART Circuit Inspection
Test Procedure
- Preparation
- -

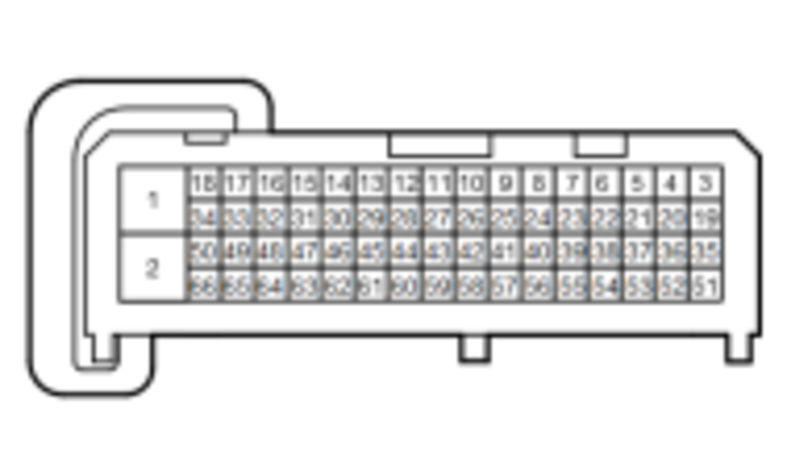

Body control module connector A (66P): disconnected
- -

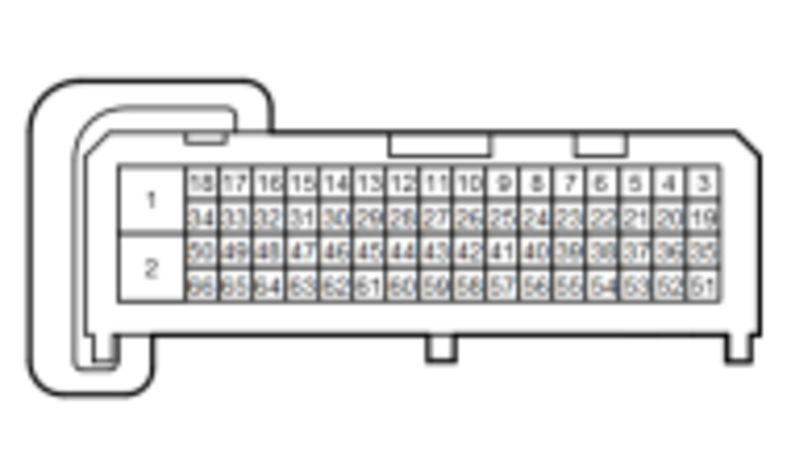

Body control module connector B (66P): disconnected
- -
- Procedure
- -
Perform the inspection according to the following chart.
- -
| (Disconnected) Body control module connector A (66P) female terminals | ||||
| IG Mode |
|
Normal Conditions | ||
| +B_BACK_UP circuit inspection | OFF | 12 V battery voltage[circuit type 1] | ||
| +B_SMART circuit inspection | OFF | 12 V battery voltage[circuit type 1] | ||
| GND open wire inspection | OFF | There is less than 1 Ohm |
| (Disconnected) Body control module connector B (66P) female terminals | ||||
| IG Mode |
|
Normal Conditions | ||
| GND open wire inspection | OFF | There is less than 1 Ohm |
Results
- If it is abnormal, there is a problem in the circuit.
If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.
+B_SMART, MTR_CONT, ESL_SW_B, ESL_SW_C, ESL_SW_D, MTR_CUT1(CONT), MTR_CUT2(IG1), ESL_PWR, IGN_TRX, GND Circuit Inspection
Test Procedure
- Preparation
- -

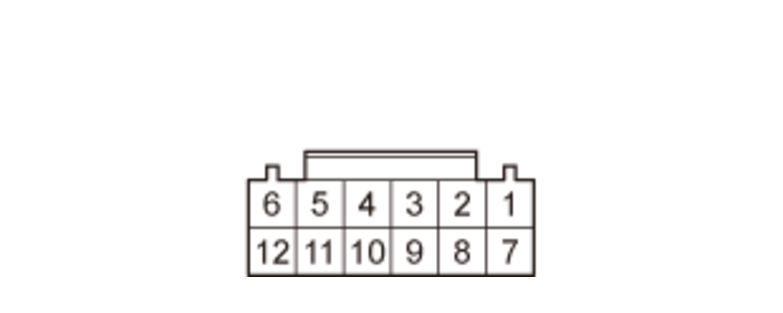

Electric steering lock connector (12P): disconnected
- -

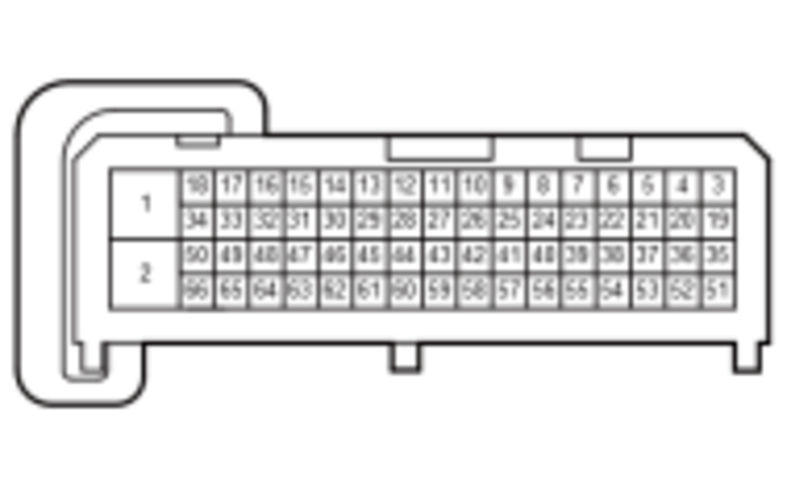

Body control module connector C (66P): disconnected
- -
- Procedure
- -
Perform the inspection according to the following chart.
- -
| (Disconnected) Electric steering lock connector (12P) female terminals | (Disconnected) Body control module connector C (66P) female terminals | ||||
| IG Mode |
|
|
Normal Conditions | ||
| +B_SMART circuit wire inspection | OFF | 12 V battery voltage [circuit type 1] | |||
| MTR_CONT open wire inspection | OFF | There is less than 1 Ohm | |||
| ESL_SW_B open wire inspection | OFF | There is less than 1 Ohm | |||
| ESL_SW_C open wire inspection | OFF | There is less than 1 Ohm | |||
| ESL_SW_D open wire inspection | OFF | There is less than 1 Ohm | |||
| MTR_CUT1(CONT) open wire inspection | OFF | There is less than 1 Ohm | |||
| MTR_CUT2(IG1) open wire inspection | OFF | There is less than 1 Ohm | |||
| ESL_PWR open wire inspection | OFF | There is less than 1 Ohm | |||
| IGN_TRX open wire inspection | OFF | There is less than 1 Ohm | |||
| GND open wire inspection | OFF | There is less than 1 Ohm | |||
| MTR_CONT shorted to ground inspection | OFF | There is more than 1 MOhm | |||
| ESL_SW_B shorted to ground inspection | OFF | There is more than 1 MOhm | |||
| ESL_SW_C shorted to ground inspection | OFF | There is more than 1 MOhm | |||
| ESL_SW_D shorted to ground inspection | OFF | There is more than 1 MOhm | |||
| MTR_CUT1(CONT) shorted to ground inspection | OFF | There is more than 1 MOhm | |||
| MTR_CUT2(IG1) shorted to ground inspection | OFF | There is more than 1 MOhm | |||
| ESL_PWR shorted to ground inspection | OFF | There is more than 1 MOhm | |||
| IGN_TRX shorted to ground inspection | OFF | There is more than 1 MOhm |
Results
- If it is abnormal, there is a problem in the circuit.
If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.
L-LINE Circuit Inspection
Before disconnecting the SRS related connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.
Test Procedure
- Preparation
- -
Body control module connector A (66P): disconnected
- -
SRS unit connector A (43P): disconnected
- -
- Procedure
- -
Perform the inspection according to the following chart.
- -

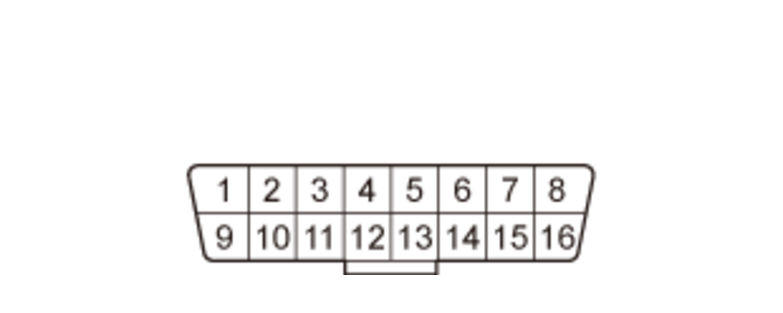

| (Disconnected) Data link connector (DLC) (16P) female terminals | (Disconnected)Body control module connector A (66P) female terminals |
| IG Mode |
|
|
Normal Conditions | ||
| L-LINE open wire inspection | OFF | There is less than 1 Ohm | |||
| L-LINE shorted to ground inspection | OFF | There is more than 1 MOhm | |||
Results
- If abnormal, there is a problem in the circuit.
Body Control Module Inspection
Since there is no direct method to test the inspection item, troubleshooting is performed using a known-good component.
Test Procedure
- Install a known-good body control module and attempt to reproduce the failure.
Results
- If the failure is reproduced, there is a problem with other related components.
- If the symptom/DTC goes away, the body control module must be faulty.
Electric Steering Lock Inspection
Test Procedure
- If the other inspection item(s) indicated a normal condition, then it is determined that the remaining electric steering lock is the cause.
Results
- There is a problem with the electric steering lock.
