Keyless Buzzer Circuit Troubleshooting: Inspection

SMART_BUZZER, GND Circuit Inspection

Test Procedure

• Preparation
  1. -

     Keyless buzzer connector (3P): disconnected

  2. -

     Body control module connector B (66P): disconnected

• Procedure
  1. -

     Perform the inspection according to the following chart.

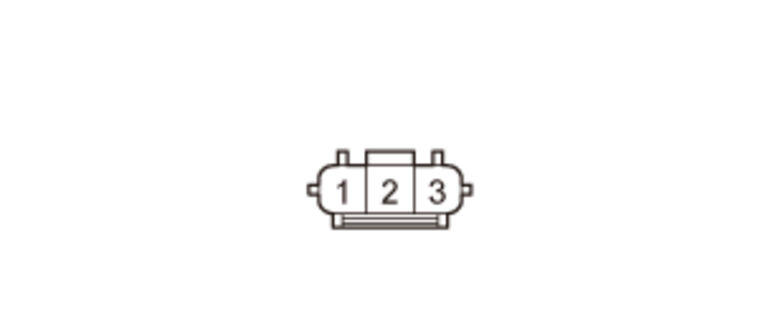

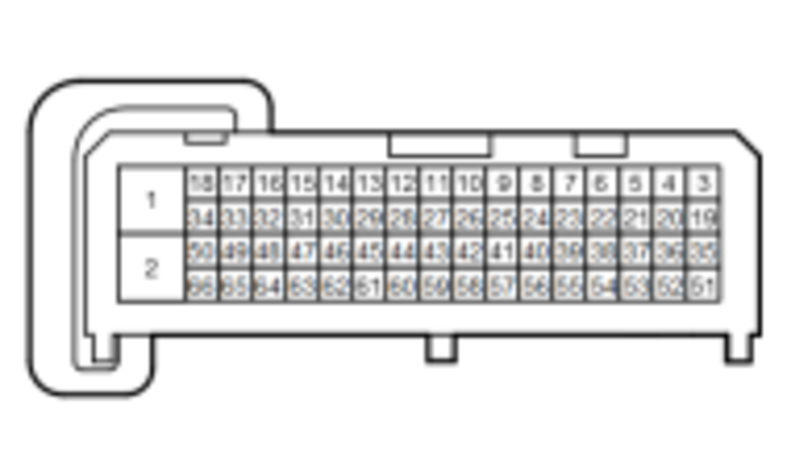

			(Disconnected) Keyless buzzer connector (3P) female terminals	(Disconnected) Body control module connector B (66P) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	SMART_BUZZER open wire inspection	OFF			There is less than 1 Ohm
	GND open wire inspection	OFF			There is less than 1 Ohm
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	SMART_BUZZER shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If it is abnormal, there is a problem in the circuit.

Keyless Buzzer Inspection

Test Procedure

• Install a known-good keyless buzzer and attempt to reproduce the failure.

Results

• If the failure is reproduced, there is a problem with other related components.
• If the symptom/DTC goes away, the keyless buzzer must be faulty.

Body Control Module Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining body control module is the cause.

Results

• There is a problem with the body control module.
