Transmitter Code Saving Method

  1. To store transmitter code, first connect the hi-scan (pro) to the Data Link Connector (DLC) in driver side crash pad lower panel.

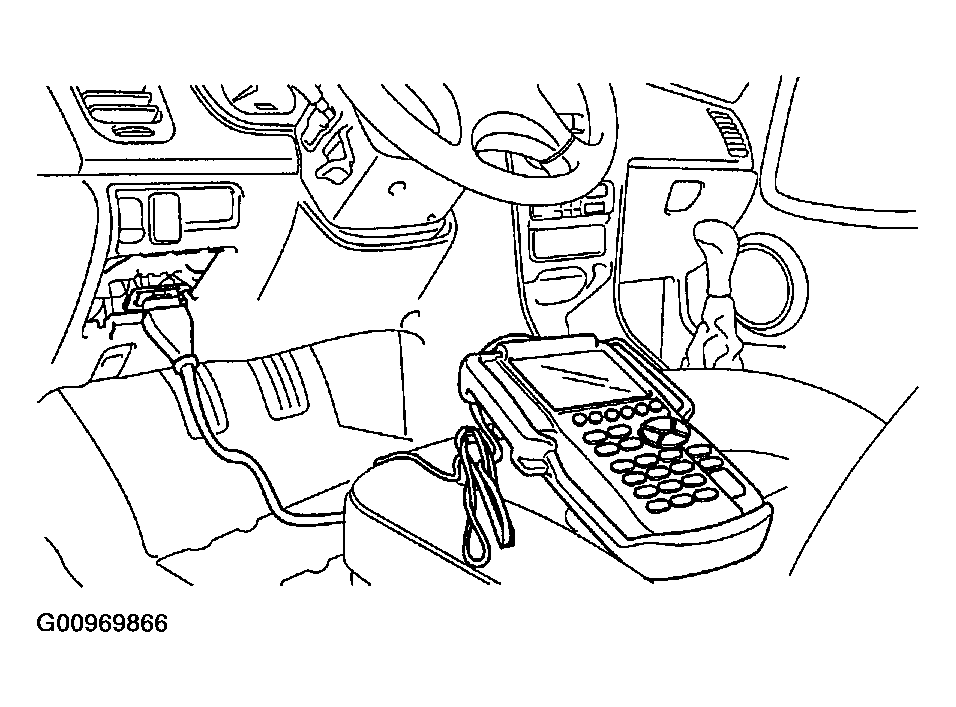

    Fig 1: Connecting Hi-Scan To Data Link Connector
    G00969866Courtesy of HYUNDAI MOTOR CO.
  2. Turn the power on hi-scan (pro) with the ignition switch ON.
  3. Select the vehicle model on hi-scan (pro).
  4. After selecting "CODE SAVING" menu then button "ENTER" key.
  5. Proceed as follow steps and then code saving is completed.
    1. Press [ENTER] key, if you are ready.
    2. Press the transmitter [LOCK] button above 1 second.
    3. If you save transmitter one more, press other transmitter [LOCK] button above 1 second.
    4. Turn the hi-scan (pro) off, and check the keyless entry system.
