Lighting Switch [M01-2]

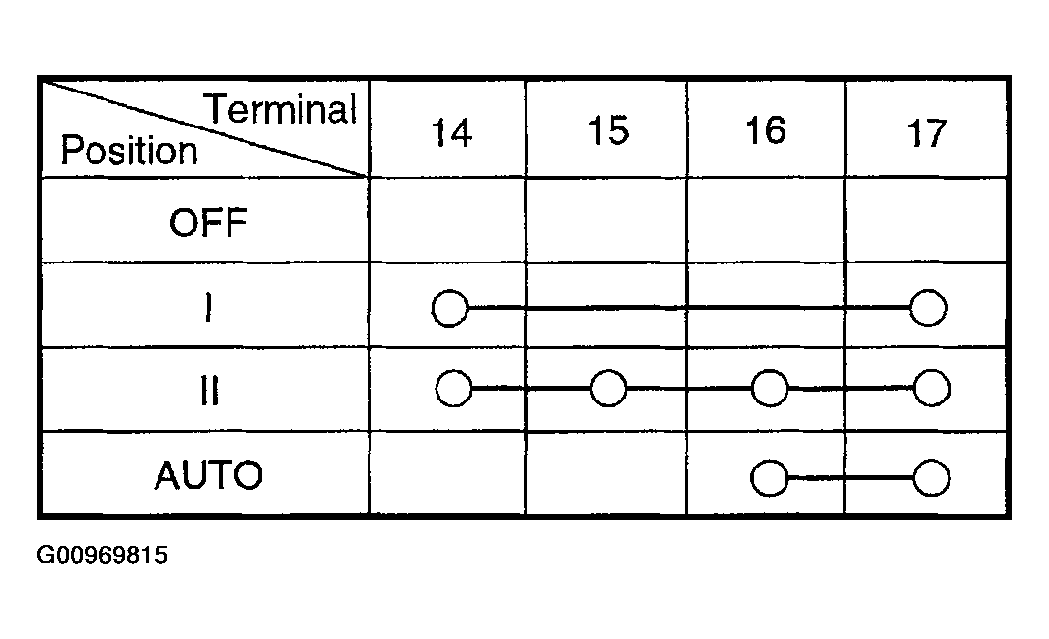

Fig 1: Lighting Switch Continuity Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
