Wiper & Intermittent Volume Switch [M01-1]

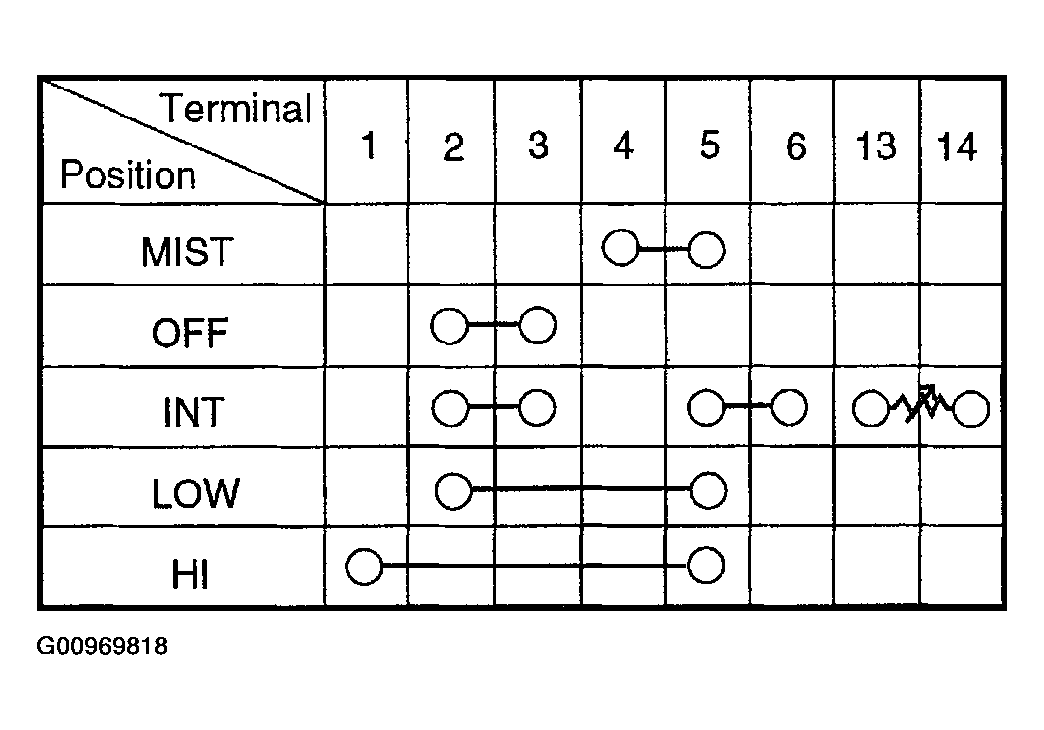

Fig 1: Wiper & Intermittent Volume Switch Continuity Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
