Signal I/O For Each Control Feature

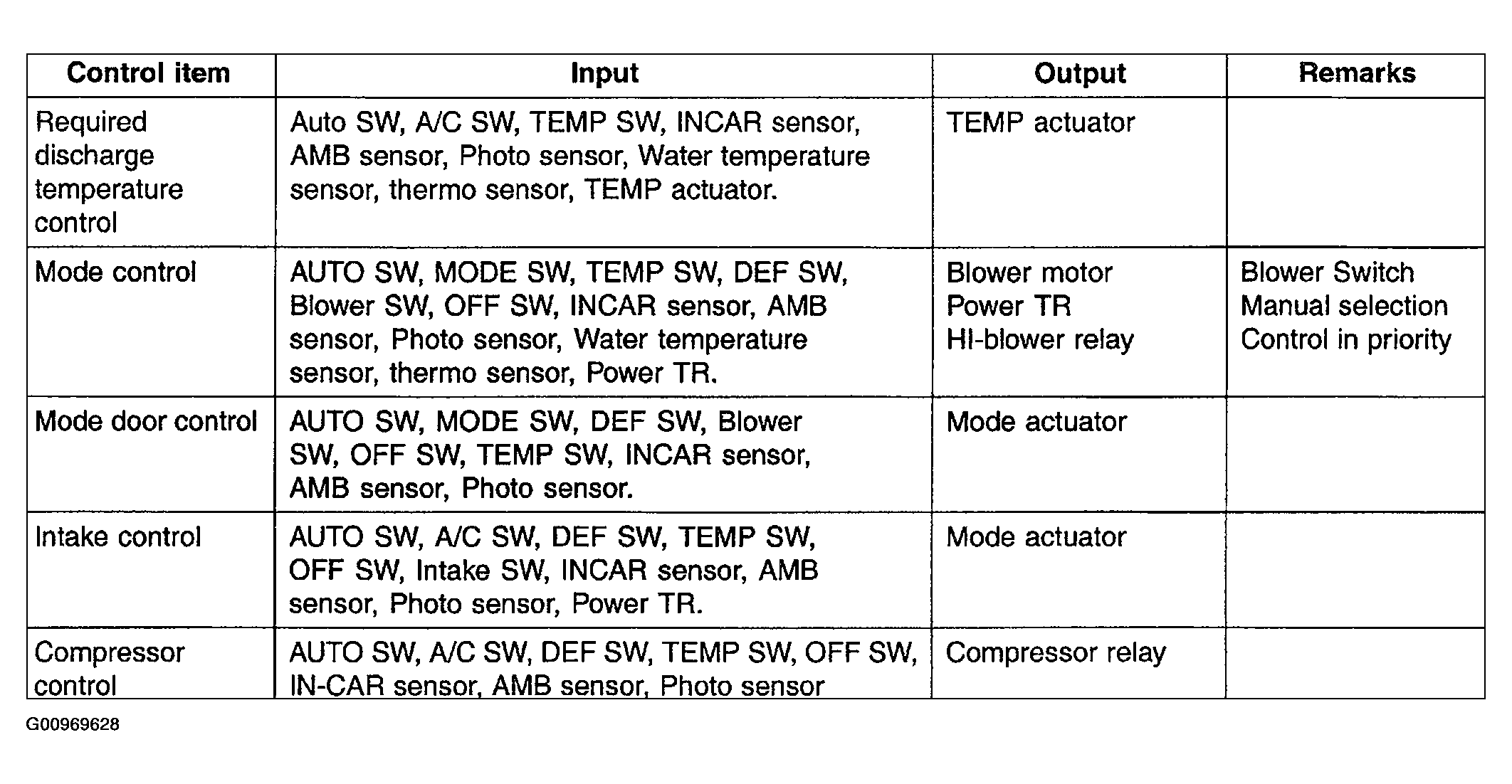

Fig 1: Signal Input & Output Table
Courtesy of HYUNDAI MOTOR CO.
During mode control, the A/C may operate during DEF or MIX mode. In order to enable dehumidification, the driver may select A/C OFF during the A/C on condition.
