Control Unit Pin Configuration (Rotary)

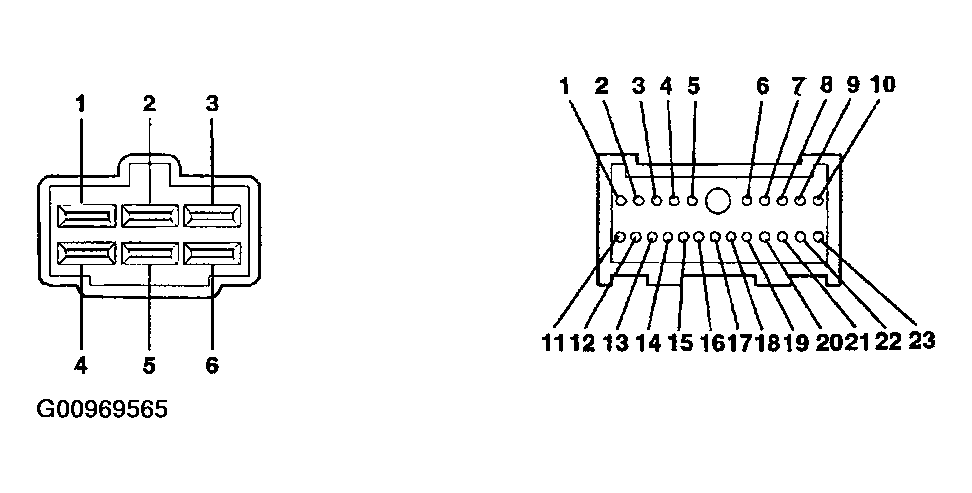

Fig 1: Identifying Control Unit Connectors & Terminals
G00969565Courtesy of HYUNDAI MOTOR CO.

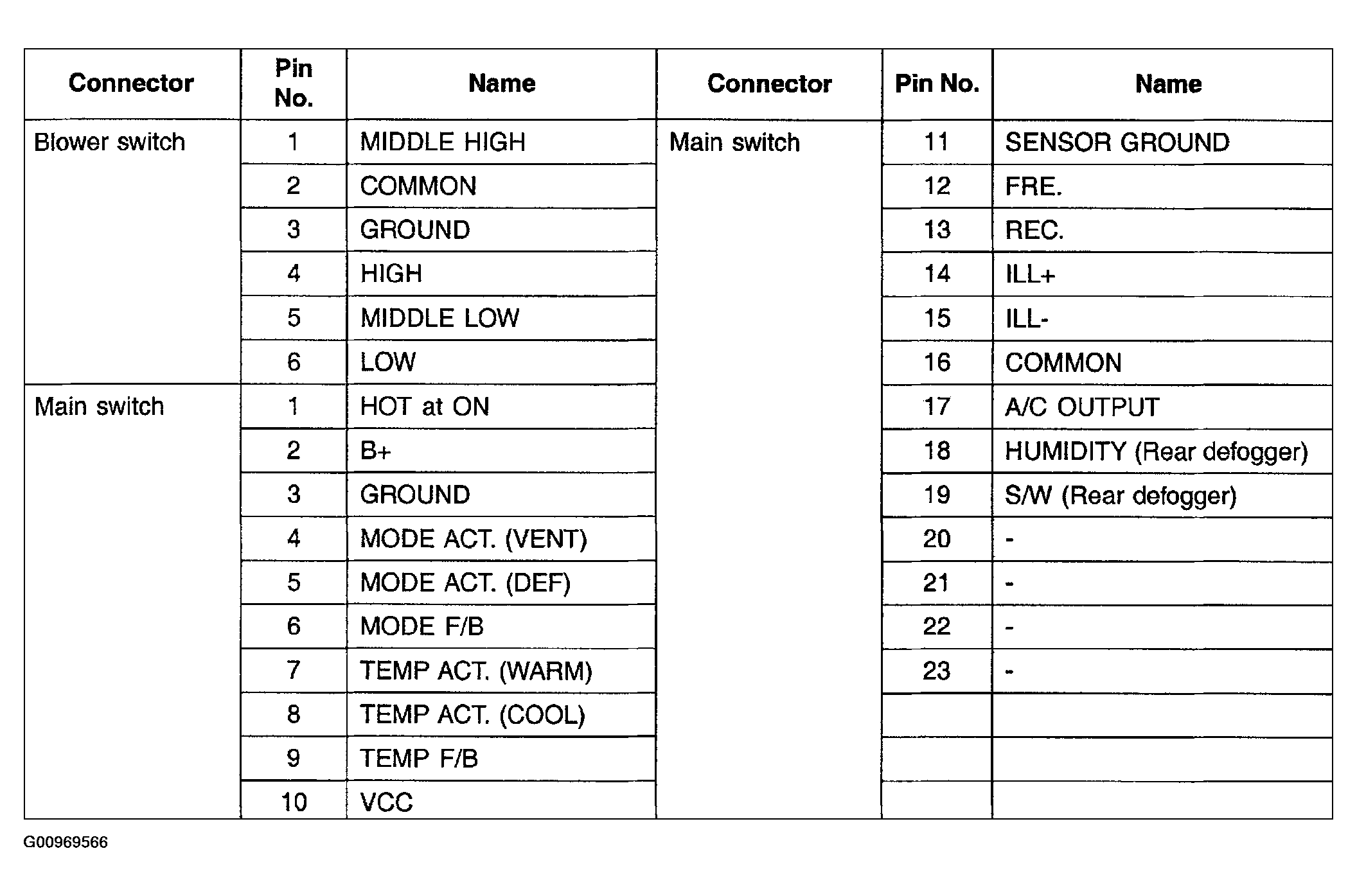

Fig 2: Control Unit Connectors & Terminals Legend
G00969566Courtesy of HYUNDAI MOTOR CO.
