Transaxle Control Module (TCM) 22-pin Connector End View (2.7L)

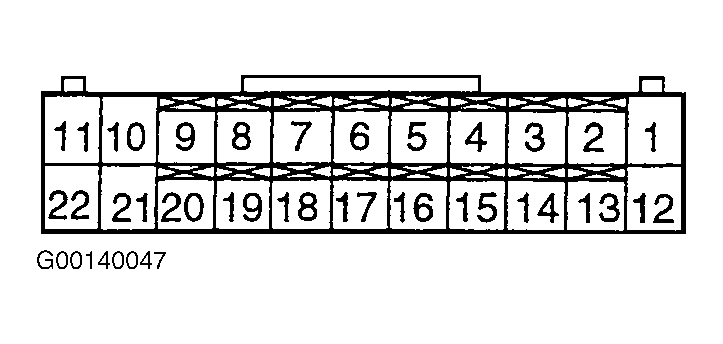

Fig 1: Transaxle Control Module (TCM) 22-pin Connector End View (2.7L)
G00140047Courtesy of HYUNDAI MOTOR AMERICA
