Ground Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect TPS connector.
  3. Ignition "ON" & Engine "OFF".
  4. Measure voltage between terminal 2 of the sensor harness connector and chassis ground.

    Specification : Approx. 0V

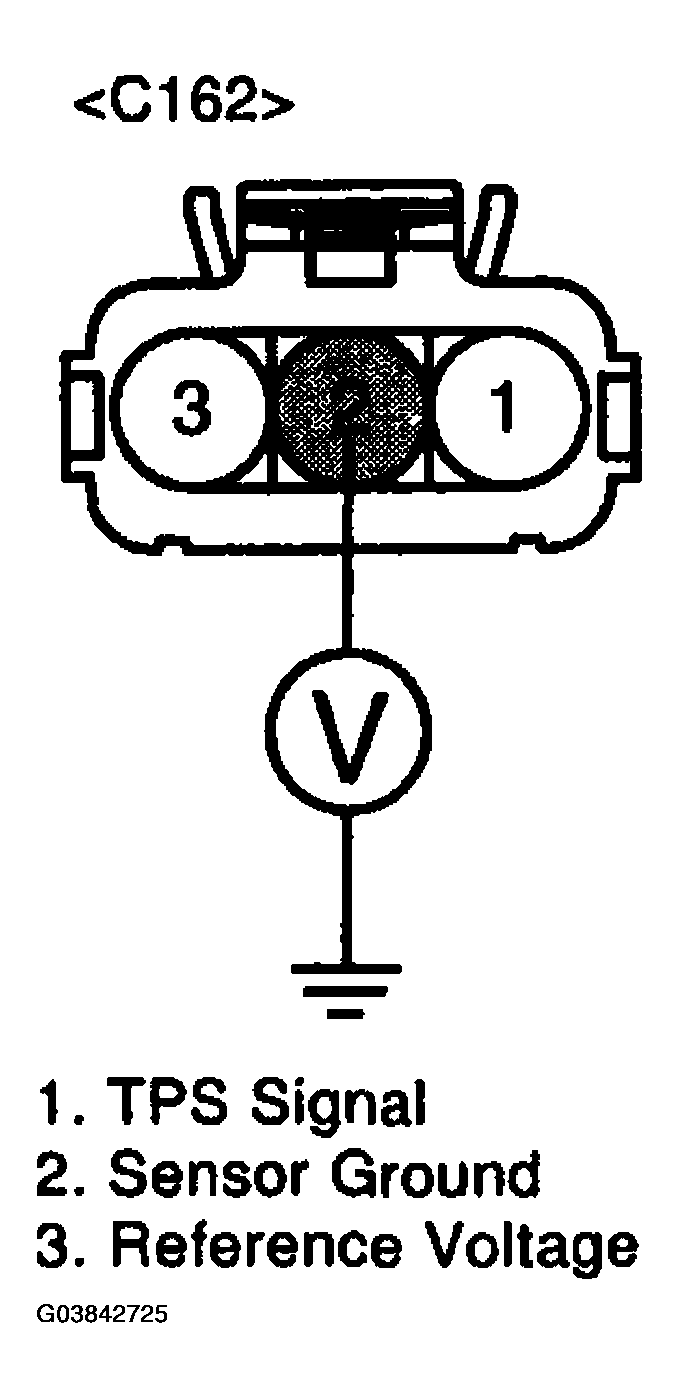

    Fig 1: Measuring Voltage Between Terminal 2 Of Sensor Harness Connector And Chassis Ground
    G03842725Courtesy of HYUNDAI MOTOR CO.
  5. Is voltage within the specification?

    YES

    NO
