Signal Circuit Inspection

  1. With connector still disconnected, measure voltage between terminal 1 of the sensor harness connector and chassis ground.

    Specification : Approx. 5V

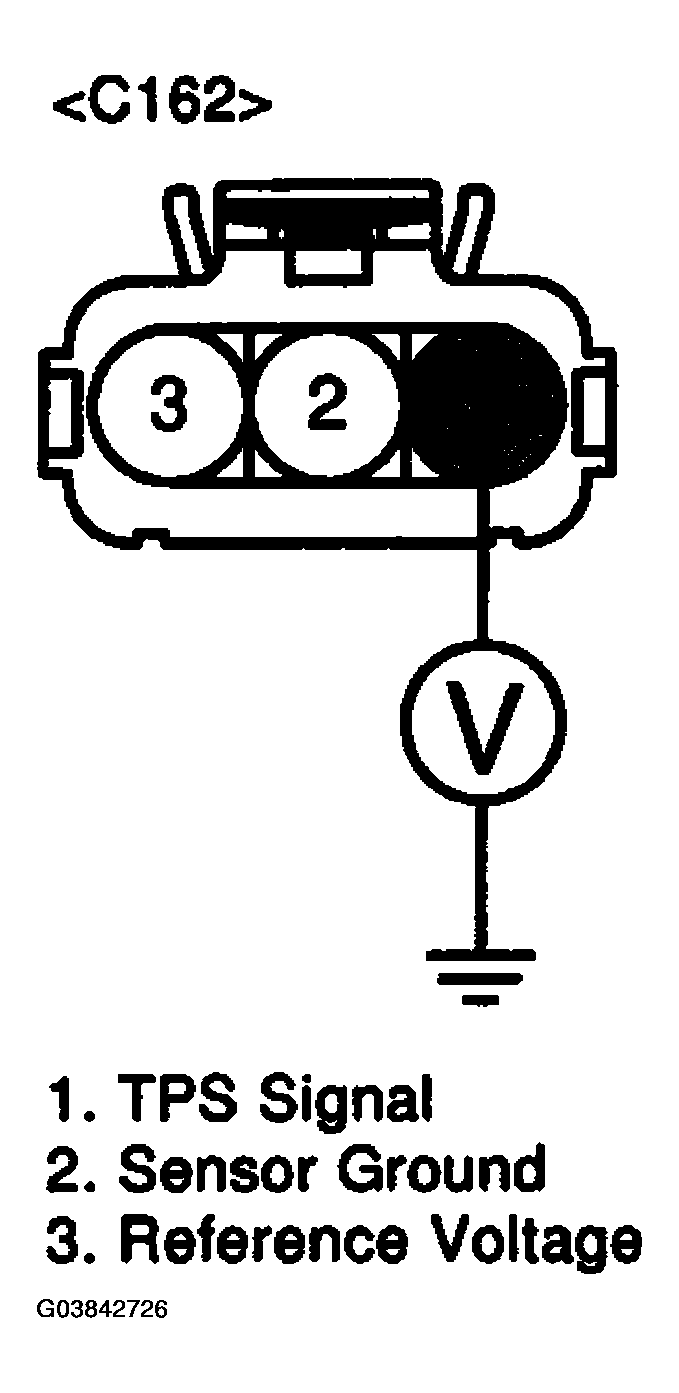

    Fig 1: Measuring Voltage Between Terminal 1 Of Sensor Harness Connector And Chassis Ground
    G03842726Courtesy of HYUNDAI MOTOR CO.
  2. Is voltage within the specification?
