DTC P0123: Throttle/Pedal Position Sensor/Switch "A" Circuit High Input (Gasoline) / Accelerator Position Sensor 1-High Input (Diesel)
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform

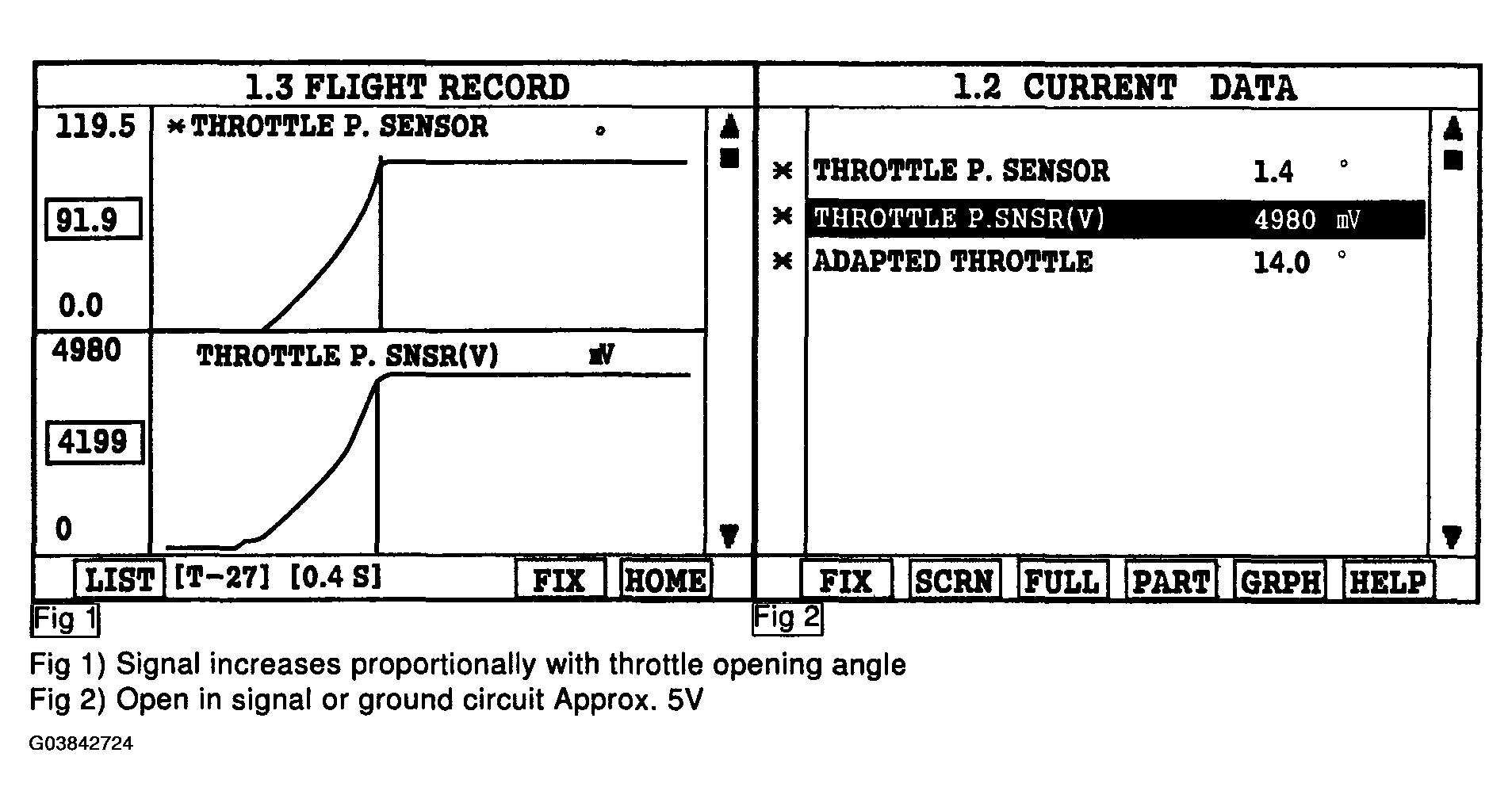

Fig 1: Throttle/Pedal Position Sensor/Switch Signal Waveform Graph
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
