Shift Lever: Adjustment

Adjusting method for the control cable

1. Set room side lever and T/M side lever (A) to "N" position.
2. Connect the room side lever and shift cable, (refer to INSTALLATION )
3. Connect the T/M side lever (A) to cable (B) in this following order;
   1. Push the cable (B) lightly to "F" direction shown to eliminate FREE PLAY of the cable (B).
   2. Tighten the adjusting nut (C).

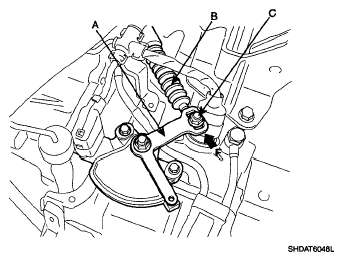

   Fig 1: Identifying T/M Side Lever And Cable


4. After adjusting the cable (B) according to procedure no. 2-3, check to be sure that this part operates surely at each range of T/M side corresponding to each position of room lever.
