ABS Warning Lamp Module

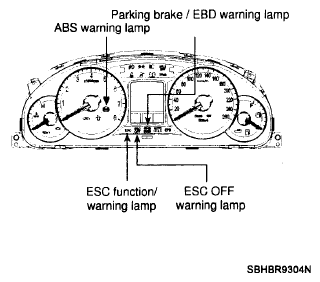

Fig 1: Identifying ABS Warning Lamp Module

Courtesy of HYUNDAI MOTOR CO.

The active ABS warning lamp module indicates the self test and failure status of the ABS The ABS warning lamp shall be on:

• During the initialization phase after IGN ON. (Continuously 3 seconds).
• In the event of inhibition of ABS functions by failure.
• During diagnostic mode.
• When the ECU Connector is separated from ECU.
