Monitor Scantool Data

Check DTC
1. Connect scantool.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within the "Enable Conditions"
  (Refer to "DTC DETECTING CONDITION CHART "

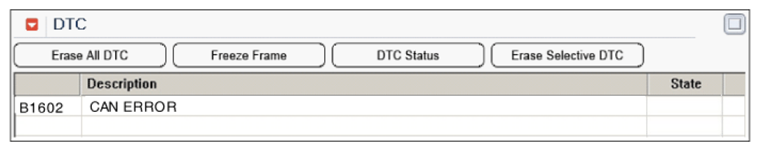

  Fig 1: Screen Display - DTC
  Courtesy of HYUNDAI MOTOR CO.
5. Is the same DTC occurred again?
  YES
  - Go to next inspection procedure.
  NO
  - Fault is intermittent, caused by poor contact in the sensor's and/or PDM's connector, or was repaired and PDM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
