Monitor GDS Data: Notes

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
  4. Change a shift lever from P-range to D-range.

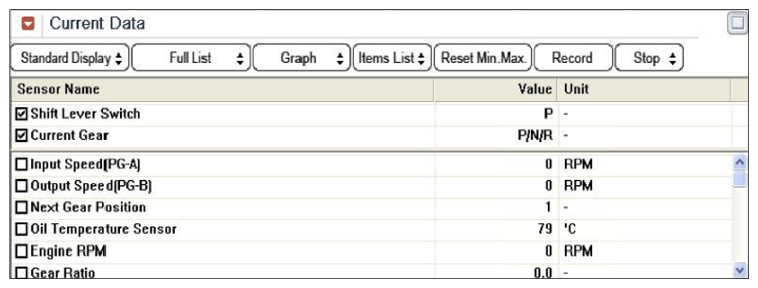

    Fig 1: Display - Transmission Range Sensor Current Data (P Range)
    G08818141Courtesy of HYUNDAI MOTOR AMERICA

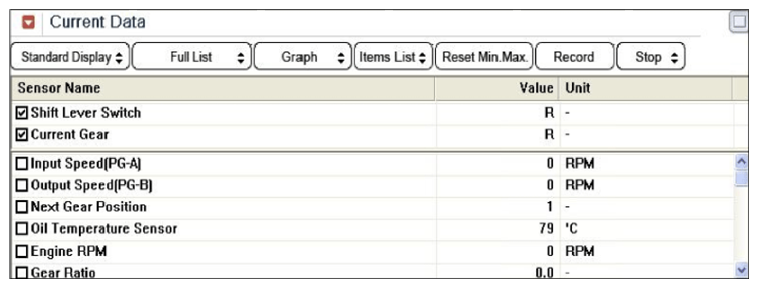

    Fig 2: Display - Transmission Range Sensor Current Data (R Range)
    G08818142Courtesy of HYUNDAI MOTOR AMERICA

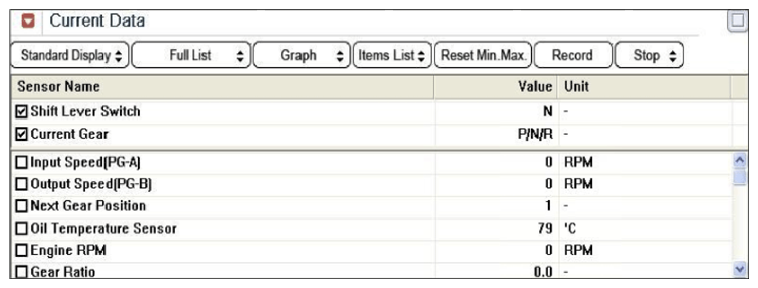

    Fig 3: Display - Transmission Range Sensor Current Data (N Range)
    G08818143Courtesy of HYUNDAI MOTOR AMERICA

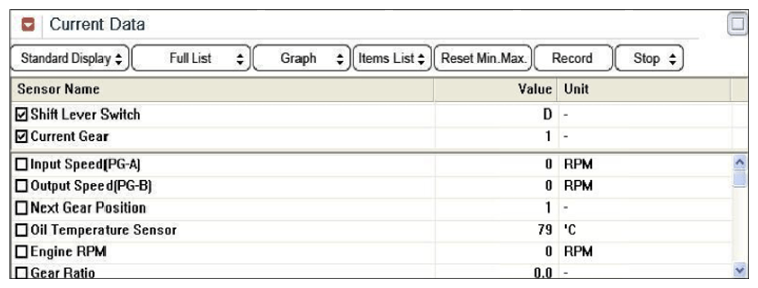

    Fig 4: Display - Transmission Range Sensor Current Data (D Range)
    G08818144Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the Inhibitor switch value changed in specification?

    YES

    • P0705 can be happened When Shift Cable alignment is not correct between TGS Lever and Transmission Range Sensor. Do not replace "Inhibitor Switch" and Check the Alignment of Shift Cable.

    NO
