Signal Waveform & Data

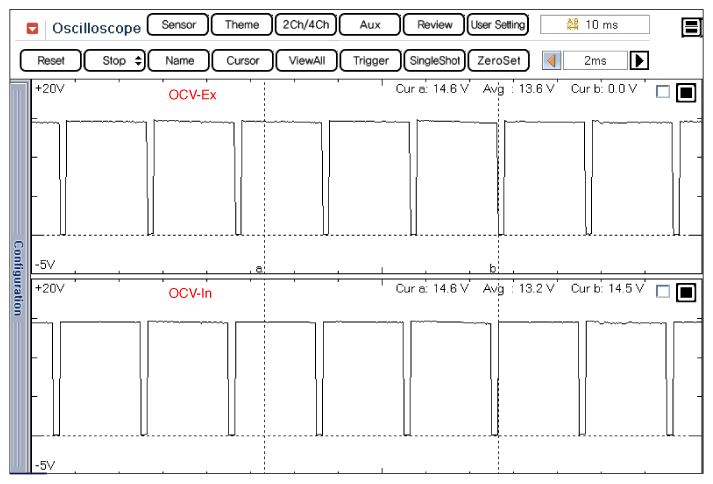

Fig 1: Screen Display - Normal Waveform Of OCV At Idle
G10609851Courtesy of HYUNDAI MOTOR AMERICA

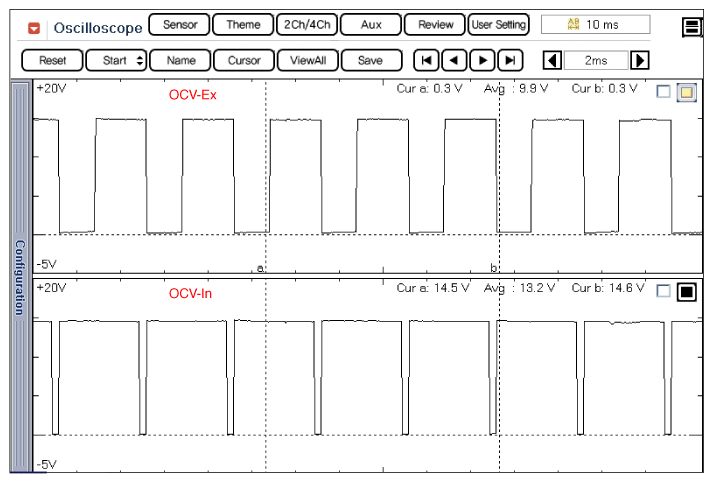

Fig 2: Screen Display - Normal Waveform Of OCV At Acceleration
G10609852Courtesy of HYUNDAI MOTOR AMERICA
