Variant Coding Procedure

■ On-Line Type On GDS

1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and Airbag System.
3. Select Variant Coding Mode.
4. Follow steps on the screen as depicted.

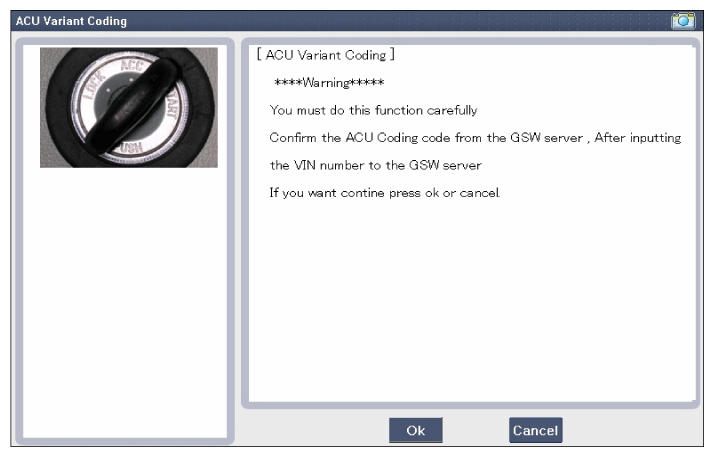

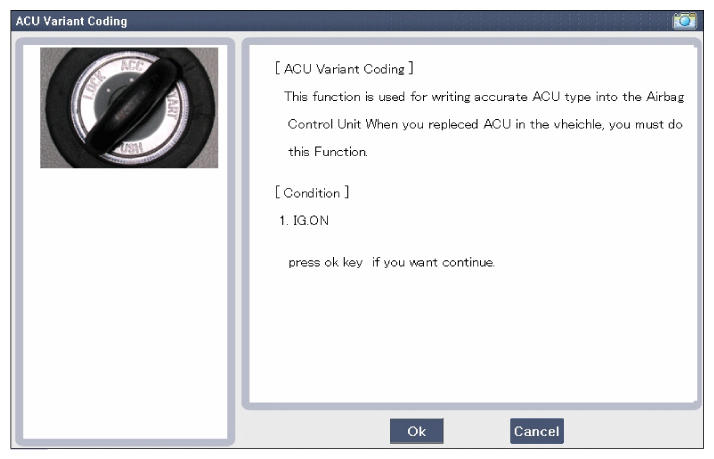

   1. Initial ACU Variant Coding screen
      Fig 1: Screen Display - ACU Variant Coding

      Courtesy of HYUNDAI MOTOR AMERICA

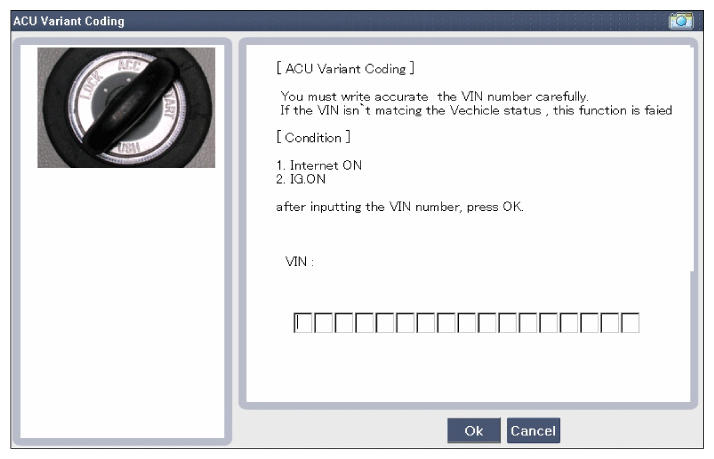

   2. VIN Code Entering Screen
      Fig 2: Screen Display - VIN Code Entering

      Courtesy of HYUNDAI MOTOR AMERICA

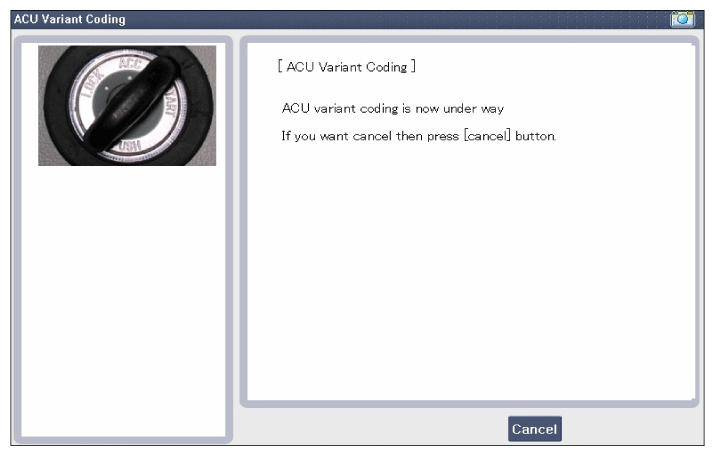

   3. Variant Coding's Proceeding Screen-1
      Fig 3: Screen Display - Variant Coding'S Proceeding 1 (1 Of 4)

      Courtesy of HYUNDAI MOTOR AMERICA

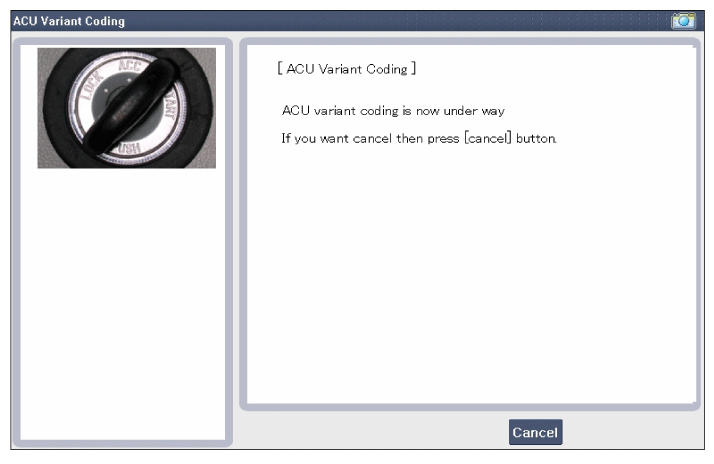

   4. Variant Coding's Proceeding Screen-2
      Fig 4: Screen Display - Variant Coding'S Proceeding 2 (2 Of 4)

      Courtesy of HYUNDAI MOTOR AMERICA

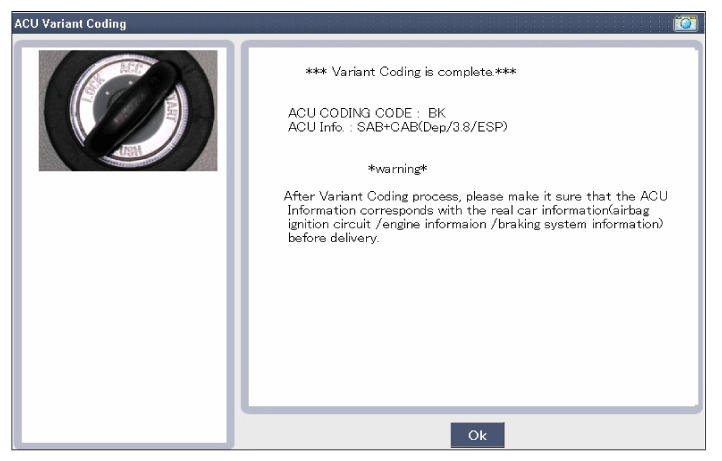

   5. Variant Coding is completed
      Fig 5: Screen Display - Variant Coding Completed (3 Of 4)

      Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:

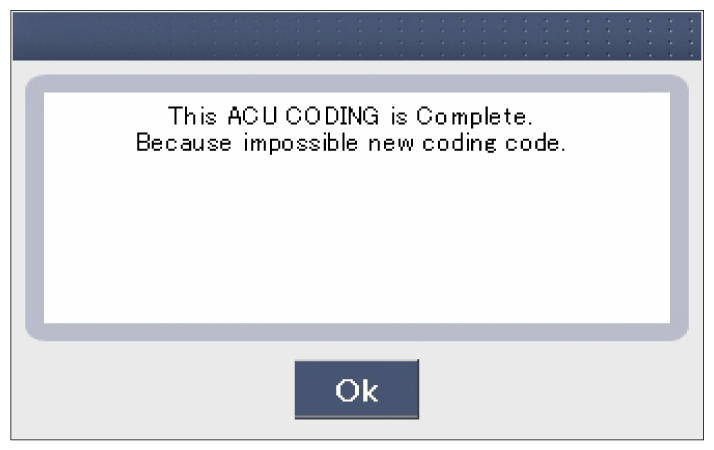

      1. This screen is opened when you try the Variant Coding again on the SRSCM which has bee performed Variant Coding.
         Fig 6: Screen Display - Variant Coding Again On SRSCM (4 Of 4)

         Courtesy of HYUNDAI MOTOR AMERICA

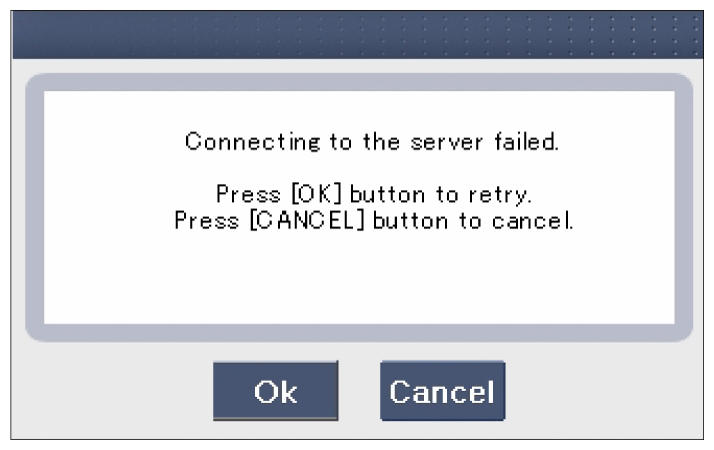

      2. Screen of Communication Failure
      Fig 7: Screen Display - Communication Failure

      Courtesy of HYUNDAI MOTOR AMERICA

■ Off-Line Type On GDS (This Can Be Used When Not Connecting To Internet)

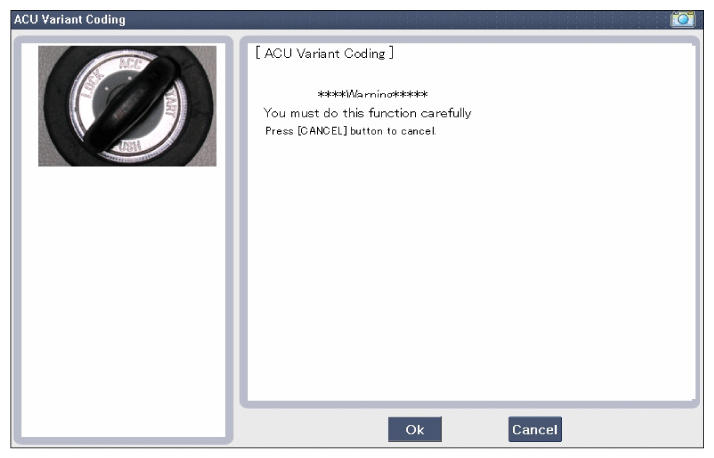

1. Initial ACU Variant Coding Screen
   Fig 8: Screen Display - ACU Variant Coding

   Courtesy of HYUNDAI MOTOR AMERICA

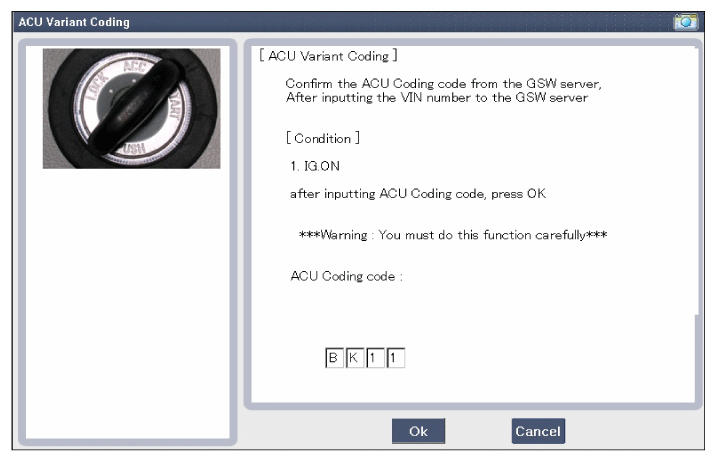

2. ACU Coding Code Entering Screen
   Fig 9: Screen Display - ACU Coding Code Entering (1 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA
3. Screen of rechecking ACU Coding Codes Entering
   Fig 10: Screen Display - Rechecking ACU Coding Code'S Entering (2 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA

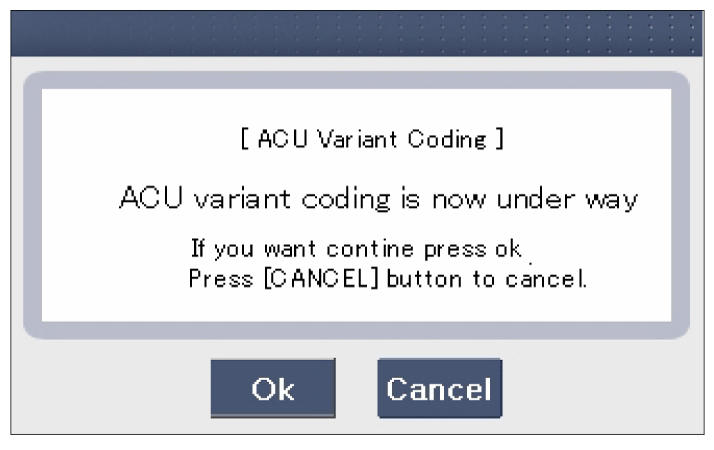

4. Variant Coding's Proceeding Screen-1
   Fig 11: Screen Display - Variant Coding'S Proceeding 1 (1 Of 3)

   Courtesy of HYUNDAI MOTOR AMERICA
5. Variant Coding's Proceeding Screen-2
   Fig 12: Screen Display - Variant Coding'S Proceeding 2 (2 Of 3)

   Courtesy of HYUNDAI MOTOR AMERICA

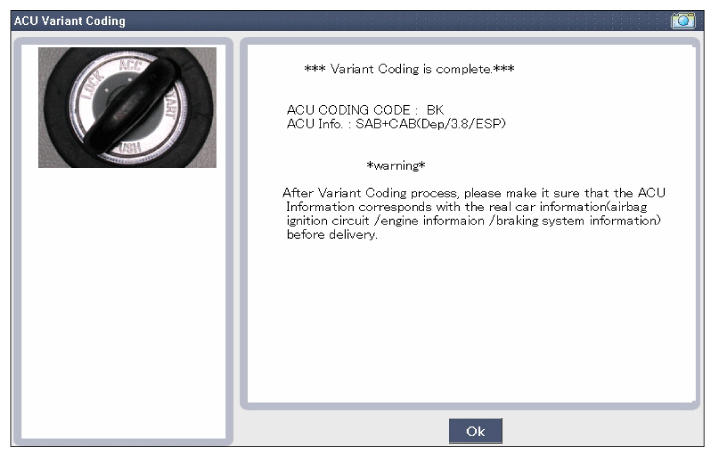

6. Variant Coding is completed
   Fig 13: Screen Display - Variant Coding Completed (1 Of 3)

   Courtesy of HYUNDAI MOTOR AMERICA
   NOTE:

   1. This screen is opened when you try the Variant Coding again on the SRSCM which has bee performed Variant Coding.
   Fig 14: Screen Display - Variant Coding Again On SRSCM

   Courtesy of HYUNDAI MOTOR AMERICA
