Repair Procedures: Installation

  1. To install, reverse the removal procedure.
CAUTION:
  • New shift lever assembly is mounted in the 4th fixing pin. After installation, remove the 4th fixed pin.

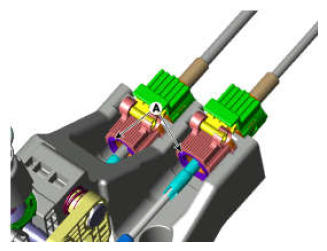

  • After installing the select cable and shift cable socket, check portion (A) to see if it projects outwards from the cap.
    G12598717Courtesy of HYUNDAI MOTOR AMERICA
  • Check operating of lever of transaxle side when operating shift lever after assembly. (1-6, R)
  • If there is sticky feel, adjust the control cable length again. (Refer to Control Cable - "INSTALLATION ")
