Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/T Control Unit | Behind left kick panel. See Figure . |
| Anti-Lock Brakes (ABS) Control Unit | Under right side of dash, above glove compartment. See Figure . |
| Anti-Theft Warning Control Unit | Behind right side of dash. See Figure & Figure . |
| Automatic Drive Positioner Control Unit | Behind left side of dash. See Figure . |
| ASCD Control Unit | Behind dash, right of steering column. See Figure . |
| ECCS Control Unit | Behind right kick panel. See Figure . |

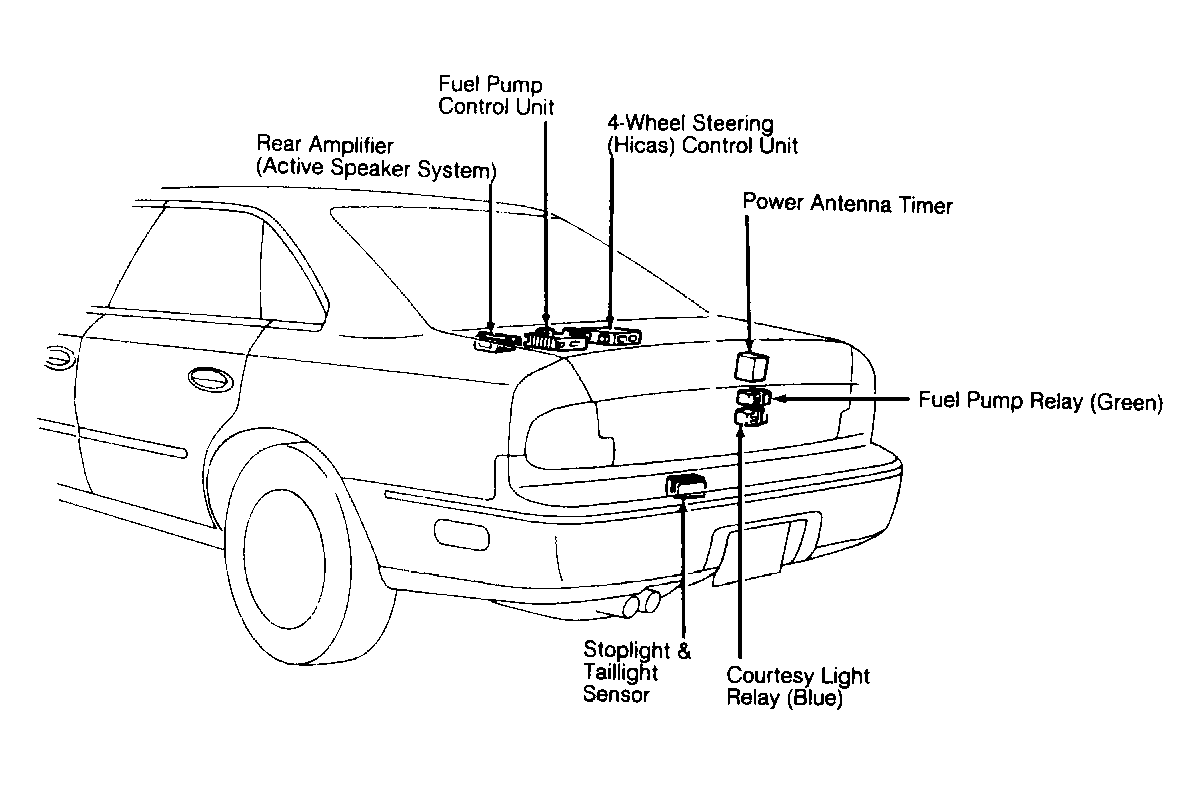

| Fuel Pump Control Unit | Under center of rear package tray. See Figure . |
| Power Seat Control Unit | Underneath each front seat. See Figure . |
| Shift Lock Control Unit | Behind left kick panel. See Figure . |
| Supplemental Restraint System (SRS) Control Unit | Under console, behind parking brake lever. See Figure . |
| Time Control Unit | Behind left kick panel. See Figure . |
| 4-Wheel Steering (Super Hicas) Control Unit | Under right rear package tray. See Figure & Figure . |
