Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

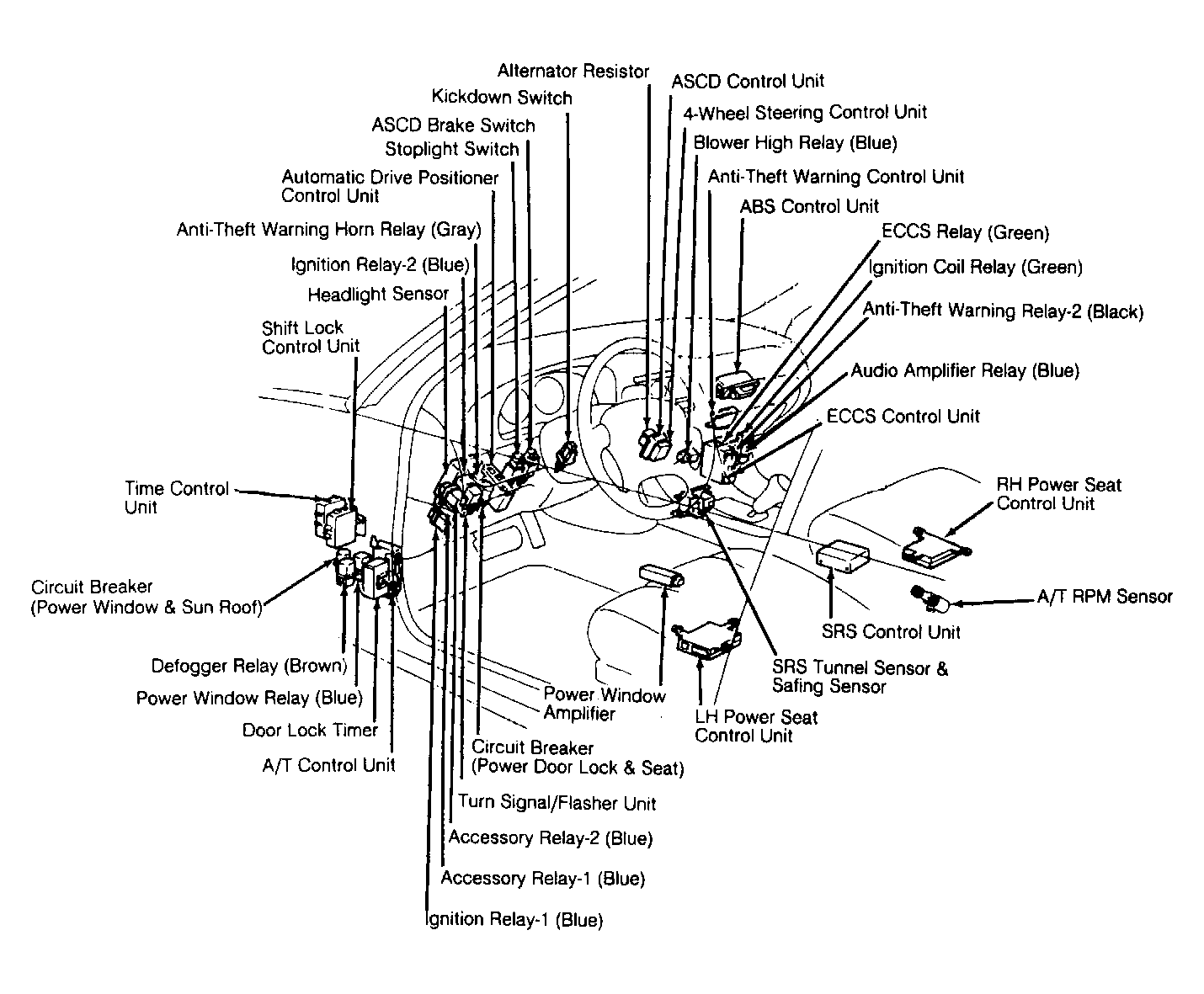

| ABS Control Unit | Under right side of dash, above glove compartment. See Figure. | |
| A/T Control Unit | Behind left kick panel. See Figure. | |

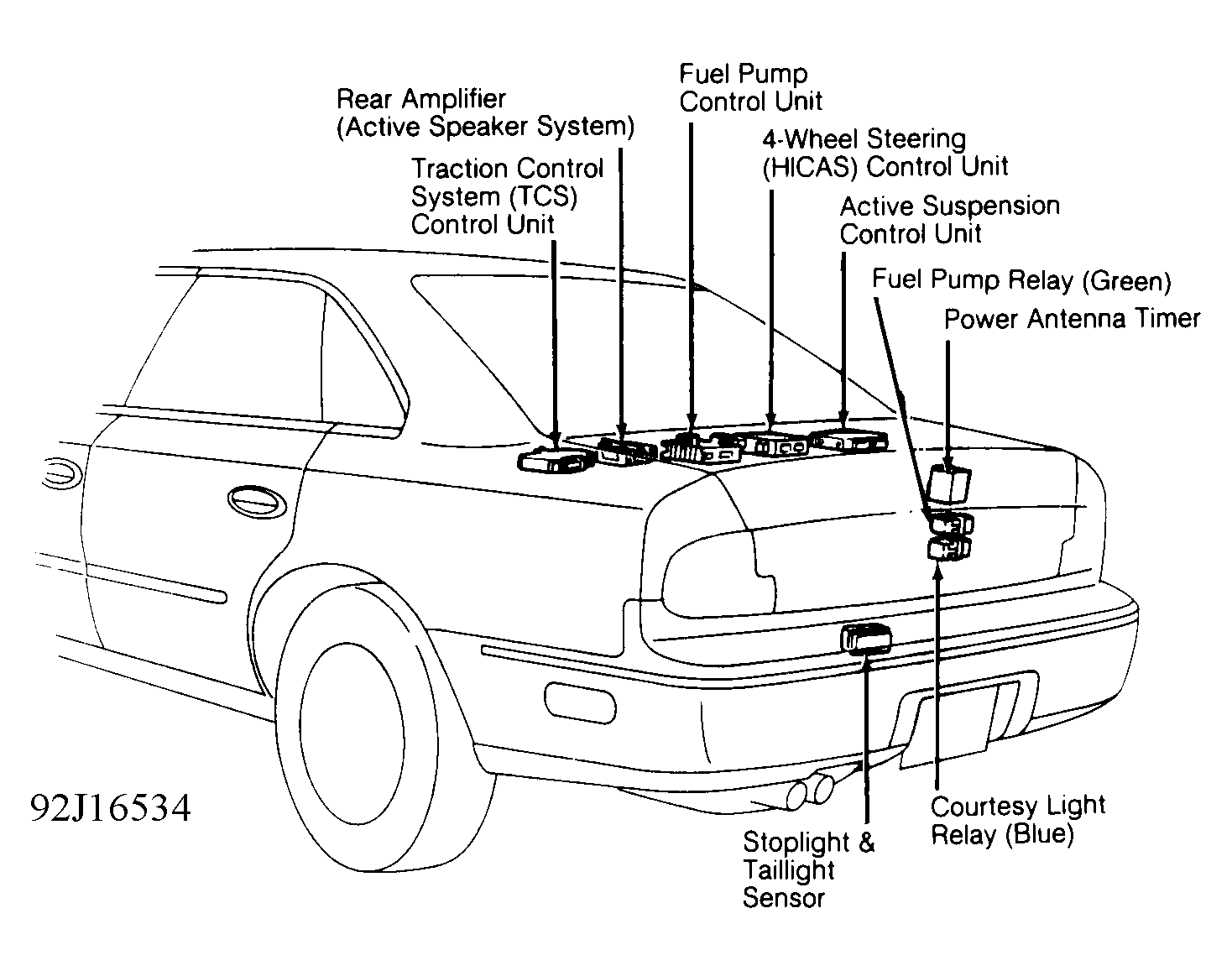

| Active Suspension Control Unit | Under right rear package tray. See Figure. | |

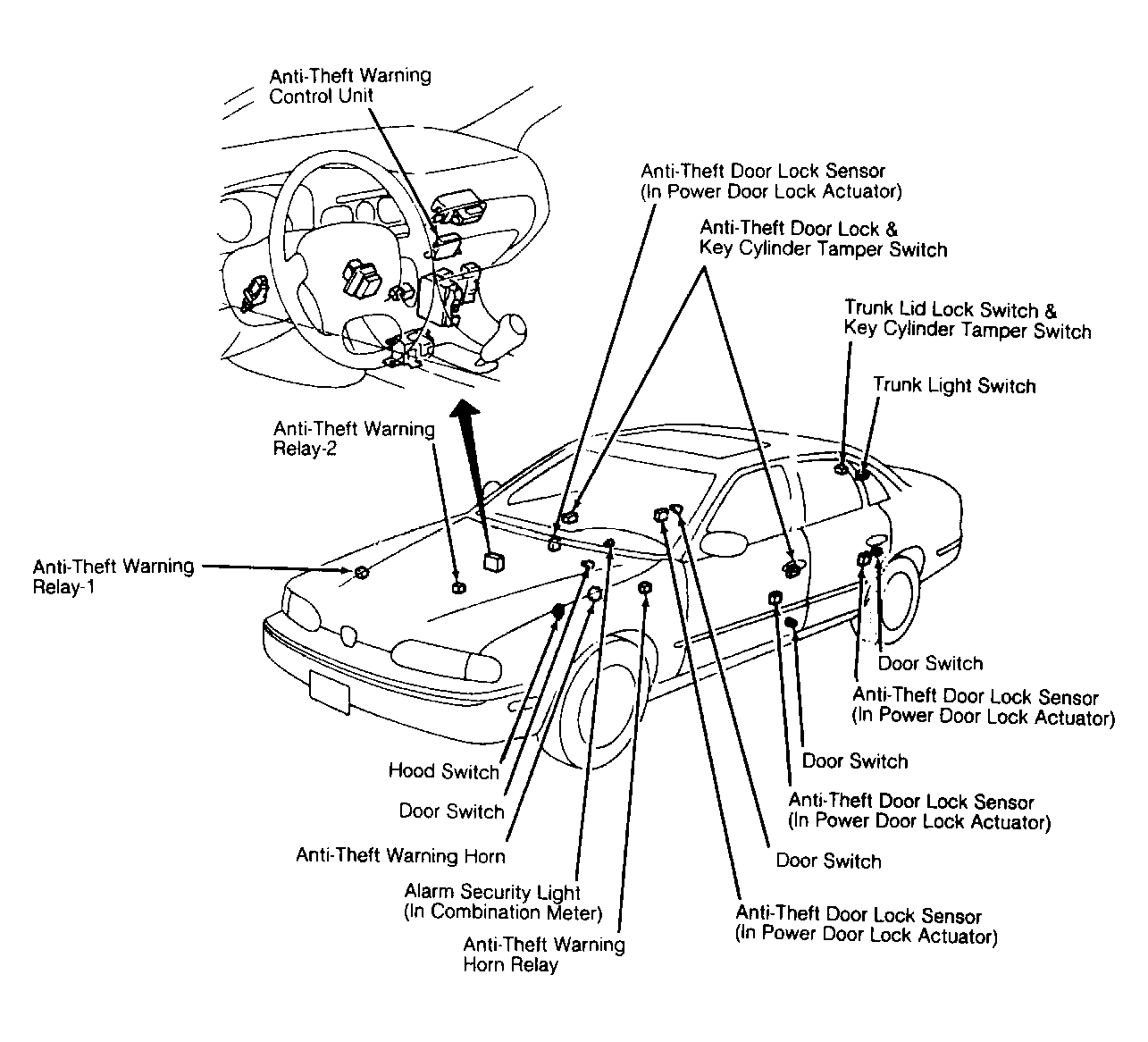

| Anti-Theft Warning Control Unit | ||
| Passenger Compartment | Behind right side of dash. See Figure. | |
| View of Component Parts & Harness Connector | Behind right side of dash. See Figure. | |
| Automatic Drive Positioner Control Unit | Behind left side of dash. See Figure. | |
| ASCD Control Unit | Behind dash, right of steering column. See Figure. | |
| ECCS Control Unit | Behind right kick panel. See Figure. | |
| Fuel Pump Control Unit | Under center of rear package tray. See Figure. | |
| Power Seat Control Unit | Underneath each front seat. See Figure. | |
| Shift Lock Control Unit | Behind left kick panel. See Figure. | |
| Supplemental Restraint System (SRS) Control Unit | Under console, behind parking brake lever. See Figure. | |
| Time Control Unit | Behind left kick panel. See Figure. | |
| Traction Control System (TCS) | ||
| Control Unit | Under left rear package tray. See Figure. | |
| Throttle Control Module | Under right side of dash. | |
| 4-Wheel Steering (HICAS) Control Unit | ||
| Passenger Compartment | Under right rear package tray. See Figure. | |
| Luggage Compartment | Under right rear package tray. See Figure. | |
