Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Under center of rear package tray. See Figure . | |
| A/T Control Unit | ||

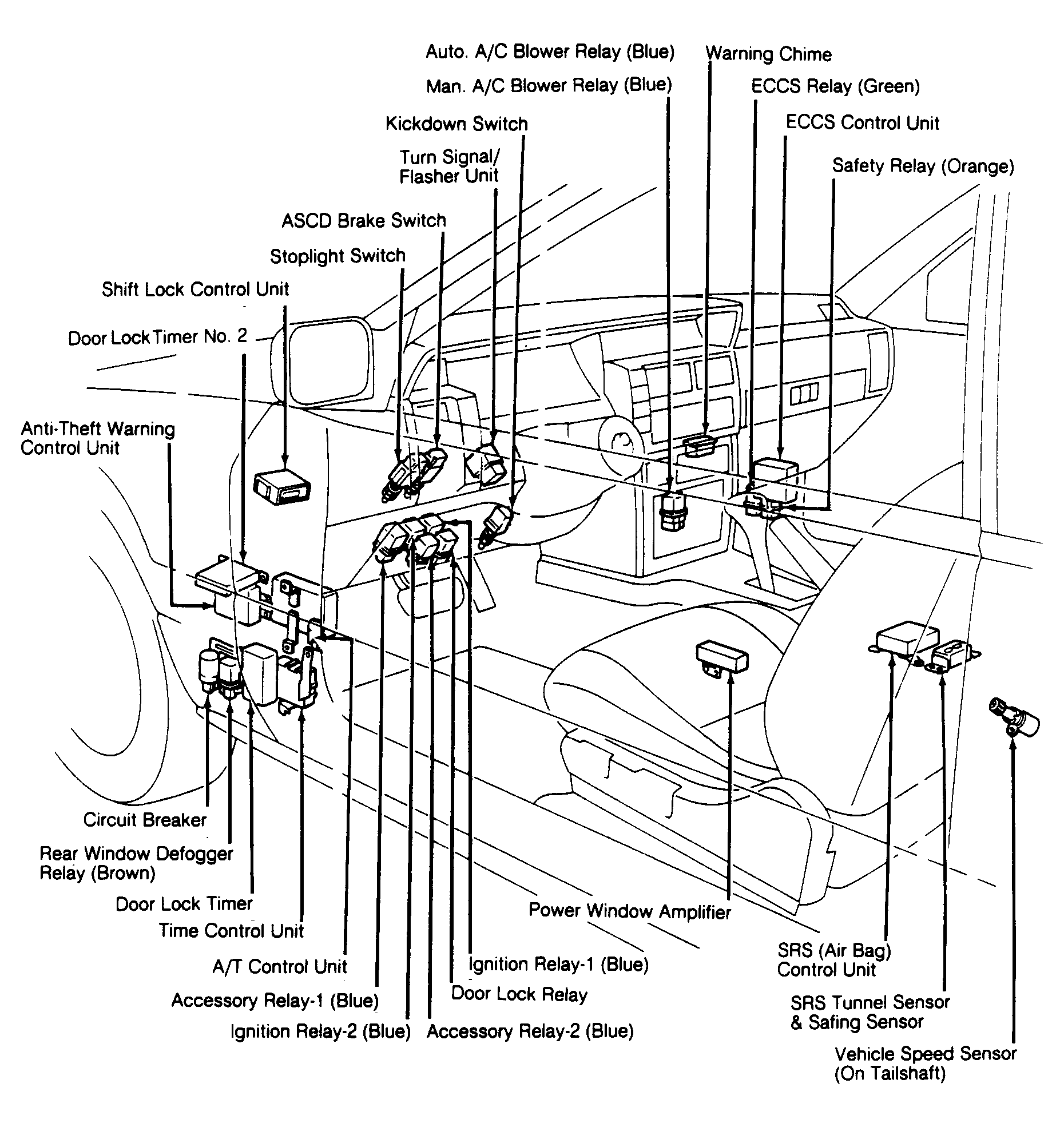

| View of Passenger Compartment | Behind left kick panel. See Figure . | |
| A/T Electrical Parts Location | Behind left kick panel. See Figure . | |
| Automatic Speed Control Device (ASCD) Control Unit | Behind left rear trim panel. See Figure . | |
| ECCS Control Unit | Behind right kick panel. See Figure . | |
| Shift Lock Control Unit | Behind dash, left of steering column. See Figure . | |
| Sonar Suspension Control Unit | Behind left rear trim panel. See Figure . | |
| SRS Control Unit | ||
| View of Passenger Compartment | Under console, behind parking brake lever. See Figure . | |
| Side View of Harness Layout | Under console, behind parking brake lever. See Figure . | |
| Theft Warning Control Unit | ||
| View of Passenger Compartment | Behind left kick panel. See Figure . | |
| Harness Layout | Behind left kick panel. See Figure . | |
| Time Control Unit | Behind left kick panel. See Figure . | |
