Ground Circuit

Disconnect negative battery cable. Disconnect junction block harness connector from interior fuse block. Using a DVOM, check for continuity between ground and junction block harness connector terminal 24A. See Fig 1 . Repair ground circuit for an open or poor connection if continuity is not present.

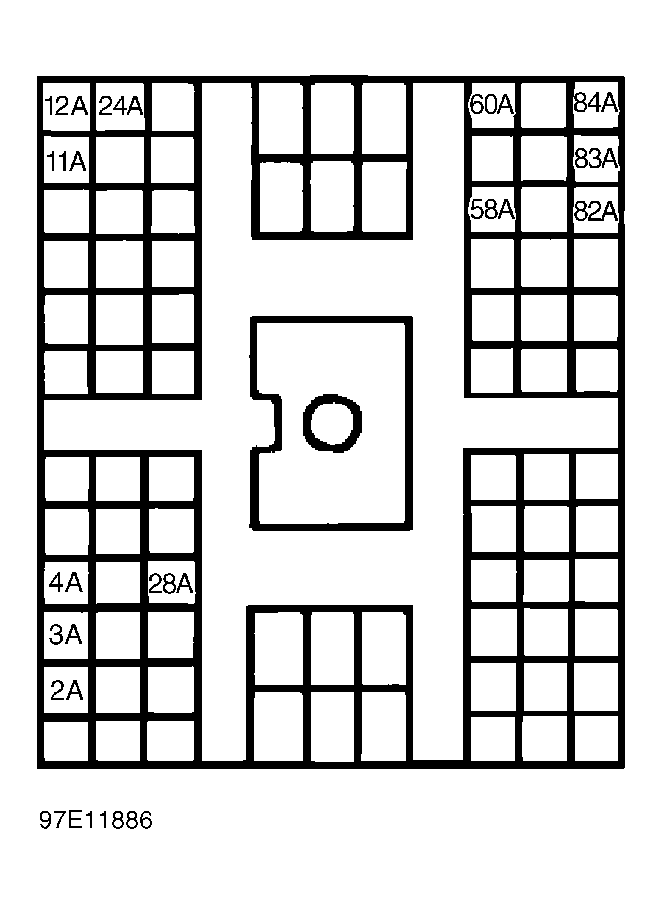

Fig 1: Junction Block Harness Connector Terminals (Terminal Side of Harness) Id

Courtesy of NISSAN MOTOR CO., U.S.A.
